Terahertz Optomechanics

Setups for transmission or reflection measurements

Transmission: versatile sets with 3D precision-stages
Collimated beam (2 mirrors) or focussed beam (4 mirrors)
Reflection: compact heads with 4 mirrors or 2 mirrors (for transceiver)
Spot size: typ. 1 mm @ 1 THz

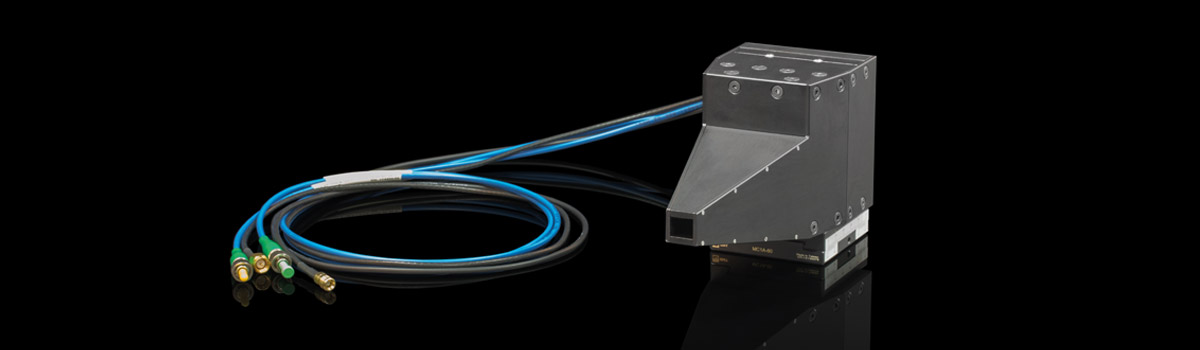

TOPTICA offers different sets of optomechanics, designed for the most common beam-path configurations. For transmission-mode experiments, three rail-based assemblies produce a collimated terahertz beam (2-mirror setups), or an additional focus (4-mirror setup). For applications that require a reflection geometry, a compact reflection head generates a focus at the location of the sample. The reflection head is available both for separate emitter/receiver antennas, and for transceiver modules.

Request a quotation Download the product brochure

Specification

Specifications	THz Optics / Tr Comp (Compact 2-mirror setup)	THz Optics / Tr 2M (2-mirror setup)	THz Optics / Tr 4M (4-mirror setup)	THz Optics / Ref 4M (Standard reflection head)	THz Optics / Ref 2M (Reflection head for transceiver)
User mode	Transmission	Transmission	Transmission	Reflection	Reflection
Terahertz beam	collimated	collimated	collimated and focussed	focused	focused
Compatibility	TeraFlash pro, TeraFlash smart, TeraScan 1550	TeraFlash pro, TeraFlash smart, TeraScan 1550, TeraScan 780	TeraFlash pro, TeraFlash smart, TeraScan 1550, TeraScan 780	TeraFlash pro, TeraFlash smart, TeraScan 1550	TeraFlash pro, TeraFlash smart

No. of parabolic mirrors	2	2	4	4	2
Collimating mirrors	Ø 1", focal length 2"	Ø 2", focal length 3"	Ø 2", focal length 3"	Ø 1", focal length 2"	Ø 1", focal length 2"
Focussing mirrors	--	--	Ø 2", focal length 2"	Ø 1", focal length 4"	Ø 1", focal length 4"
Focus size	--	--	Typ. 1 mm @ 1 THz	Typ. 1 mm @ 1 THz	Typ. 1 mm @ 1 THz
2 xyz stages for photomixers	--	Included	Included	--	--
Manual delay stage	--	Included	Included	--	--
Motorized delay stage	No, please see Phase Modulation Extension
Optical rails	Included	Included	Included	--	--
