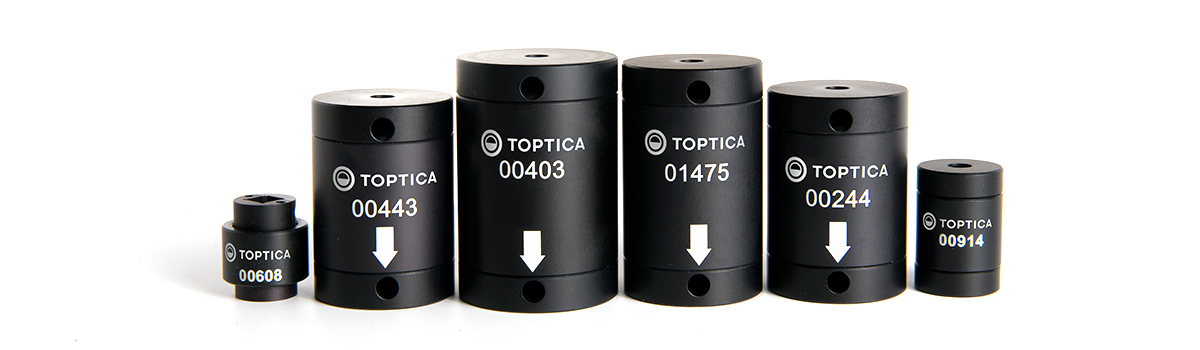

Single-Stage TOPTICA Isolators
Tunable Single Stage Performance
- Designed and manufactured by the laser experts of TOPTICA
- High power damage threshold (4 kW/cm2)
- Highest guaranteed isolation in industry, high transmission
- Center wavelength coverage encompasses 395 - 425 nm and 630 - 1400 nm
- All internal components angled 1° to eliminate back reflection
TOPTICA’s product line of Faraday Optical Isolators are specially designed and manufactured in-house by the laser experts of TOPTICA to give industry leading performance in single stage configurations. Single stage devices provide at least 35 dB isolation and 85% transmission (> 43 dB and > 92% average) over individual wavelength ranges in total spanning 392.5 - 427.5 nm and 630-1400 nm.
All models are wavelength adjustable and can handle power densities up to 4 kW/cm2. These are the same components already used by TOPTICA in the industry-leading DL pro, TA-SHG pro, and TA-FHG pro laser systems. The same superior isolators that make TOPTICA lasers the industry standard are now offered individually. Custom and OEM isolator requests are welcome.
-
Specification
Model SSR405 SSR460 SSR650 SSR690 SSR730 SSR780 SSR835 SSR885 SSR945 SSR1150 SSR1250 SSR1350 Design Wavelength [nm] 405 460 650 690 730 780 835 885 945 1150 1250 1350 Tunable Wavelength Range [nm] 395 - 425 450 - 480 630 - 670 670 - 710 710 - 750 750 - 810 810 - 860 860 - 910 905 - 985 1100 - 1200 1200 - 1300 1300 - 1400 Fixed Operation Range* [+/- nm] 2.5 3 5 6 6.5 7 7.5 8 9 10 10 10 Clear Aperture [mm] 4.5 4.7 Isolation at Design Wavelength (Min/Ave) [dB] 35/43 Transmission (Min/Ave) [%] 85/92 Power Handling 40 W, 4 kW/cm2 10 W, 320 W/cm2 Operating Temperature Range +15 C to 40 C, non-condensing Storage & Transport Shock 25 g/10 ms. Vibration 3 g (15 - 100 Hz). 0 C to 60 C non-condensing Mounting Clamp Model A B B B B B B C A A A
*with respect to design wavelength > 35 dB and > 85% -
Options
- Custom and OEM isolators are available upon request. Our team of expert engineers can tackle the most demanding applications.
Please contact us to discuss and for a quote.
- Custom and OEM isolators are available upon request. Our team of expert engineers can tackle the most demanding applications.
-
Applications
- Eliminate feedback instabilities in ECDLs
- Reduce back reflections from fiber coupling
- Stabilize injection locking
- Eliminate feedback-induced damage
