RFA

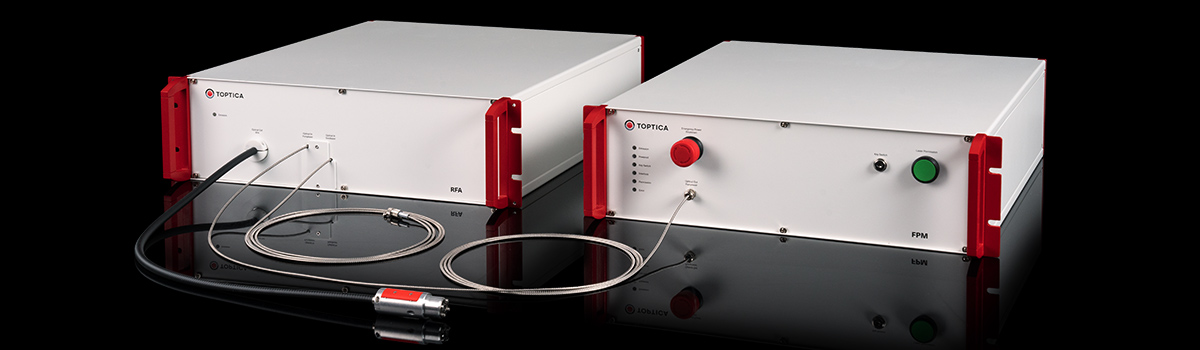

High power CW Raman Fiber Amplifier

  • 1120 .. 1370 nm , up to 30 W

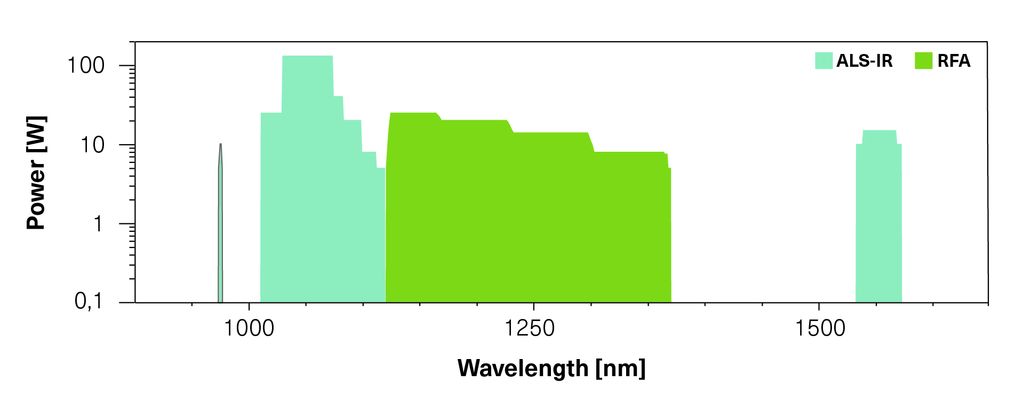

Our new highly reliable Raman fiber amplifiers are based on patented new technology. With their high power up to 30W the amplifiers cover the wavelength range from 1120 to 1370 nm that is not accessible by Yb or Er fiber amplifiers. With a tuning range of 10nm and a relative intensity noise <1% RMS, TOPTICA offers its own portfolio of RFAs that can be seamlessly integrated with TOPTICA lasers as seeders and frequency converters to reach visible and UV wavelengths.



Icon High Power
High power Wavelength tunability Narrow linewidth Stability over time



Download the product brochure
  • Specification

    Example systems  RFA IR-I  RFA IR-II
    Central wavelength [nm] 1160 1207 1292 1370
    Output power [W] 30 > 25 > 15 > 8
    Coarse Tuning range [nm] ± 5 ± 5 ± 5 ± 5
    Power stability ±1% over 100 hours
    Intensity noise <1% RIN RMS 10 Hz – 10 MHz
    Polarisation linear, PER >20 dB
    Linewidth (5 µs) <100 kHz (dependent on seed laser)
    Continuous scan range >20 GHz with DL pro seed; up to 10nm with CTL seed
    Output collimated
    Dimensions 2x 19’’ 3U



    Example frequency converted systems RFA + SHG* RFA + FHG**
    Central wavelength [nm] 671 589 318 308 302
    Output power [W] > 4 > 15 > 3 > 2 > 1
    Coarse Tuning range [nm] ± 1 ± 1 ± 1,5 ± 1 ± 1
    Typical linewidth (5 µs) 100 .. 300 kHz 200 .. 500 kHz

    *SHG: Second harmonic generation
    **FHG: Fourth harmonic generation
    See Frequency-Converted Lasers for further SHG & FHG details and wavelengths
