Better Results for Skin Cancer Surgery

ǀ  TOPTICA News

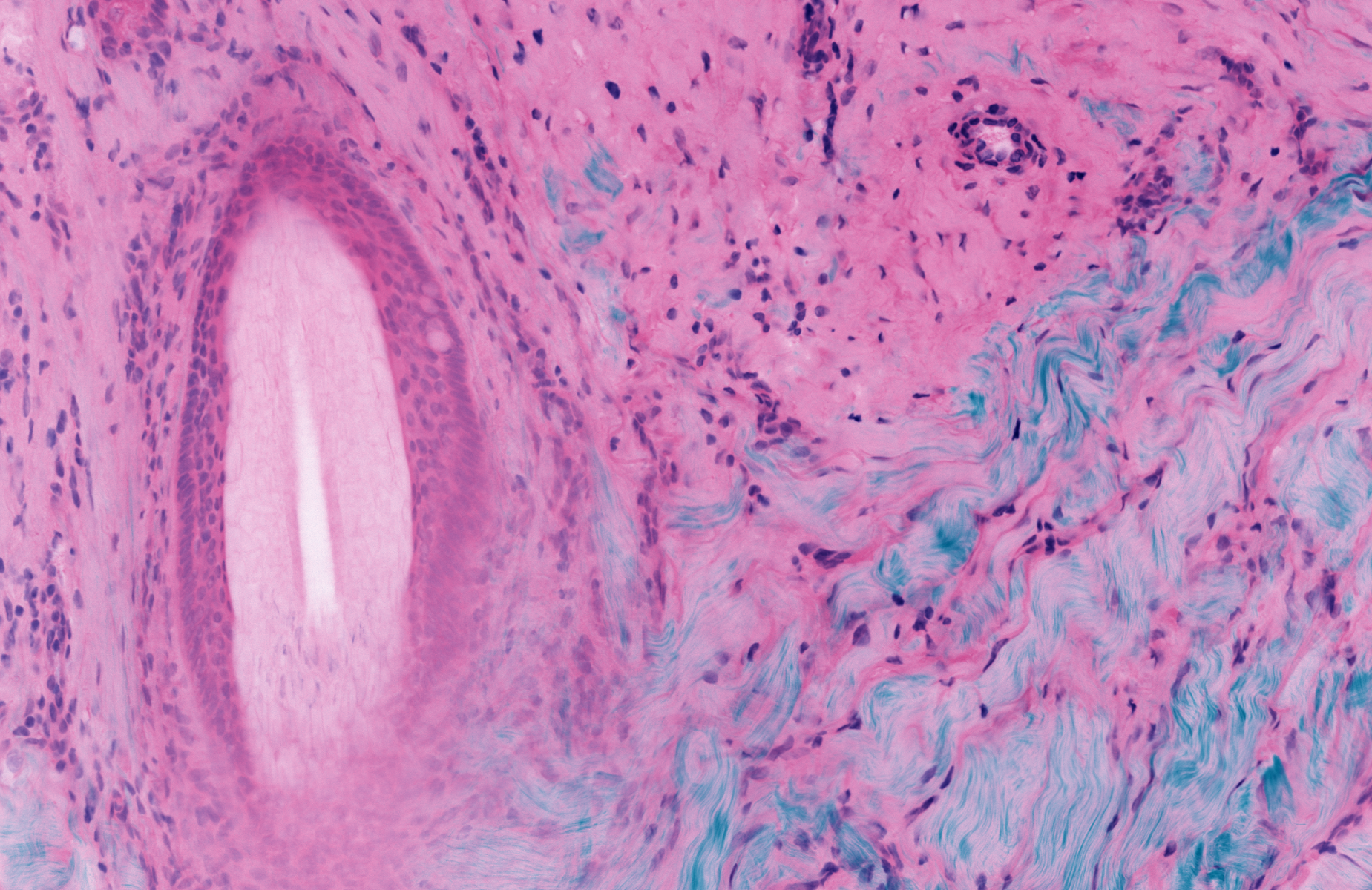

Magnification of a false-color Masson’s Trichrome image of a cm-scale tissue sample measured with two-photon imaging. Pink is a fluorescent protein stain, Purple is a DNA stain, and blue is SHG in Collagen connective tissue. Image: Prof. Michael Giacomelli / University of Rochester

Mohs skin surgery can bring a permanent cure to skin cancers, when other methods have failed. Complete surgery and repair of the surgical site is normally a same day operation. However, Mohs is slow and extremely labor intensive because it depends on frozen sections processing to produce histological images. The cost and reduced throughput associated with frozen section processing limits its availability to patients while contributing to rising health care costs. Prof. Giacomelli and his team want to solve this problem by using fluorescence microscopy.

University of Rochester Prof. Michael Giacomelli recently received NIH funding for his project, "Fluorescence microscopy for evaluation of Mohs surgical margins". His research objective is to enable real-time evaluation of pathology in skin tissue with an order of magnitude reduction in processing time as compared to frozen sections.

The most common forms of cancer worldwide are basal cell carcinoma and squamous cell carcinoma. And their incidence is showing a rapidly increasing trend in the last years. Mohs surgery is a widely used technique for the treatment of nonmelanoma skin cancer that obtains extremely low recurrence rates by imaging tissue as it is removed from the body to ensure complete resection. Mohs Micrographic Surgery, also called Mohs Surgery, is a specialized technique to remove non-melanoma skin cancers.



Fluorescence microscopy enables real-time evaluation of pathology

Nonmelanoma skin cancer (NMSC) is primarily diagnosed by histologic analysis of skin biopsy specimens in kerosene sections, which takes days to weeks before a formal diagnosis is made. Two-photon fluorescence microscopy (TPFM) has the potential for point-of-care diagnosis of NMSC and other dermatologic conditions, which could allow diagnosis and treatment at the same site.

Prof. Giacomelli developed a way to image multiple depth slices without frozen section processing – by implementing two-photon imaging, widely used in the neurosciences to noninvasively image slices at different depths in living brains.  The lab team's research has adapted these fluorescence imaging technologies with rapid tissue labeling and image processing technologies. This enables real-time assessment of pathology in skin tissue. processing time compared to frozen sections has been reduced by an order of magnitude. The data collection time is further reduced using the lower-noised silicon photomultiplier detectors developed by Giacomelli’s group.

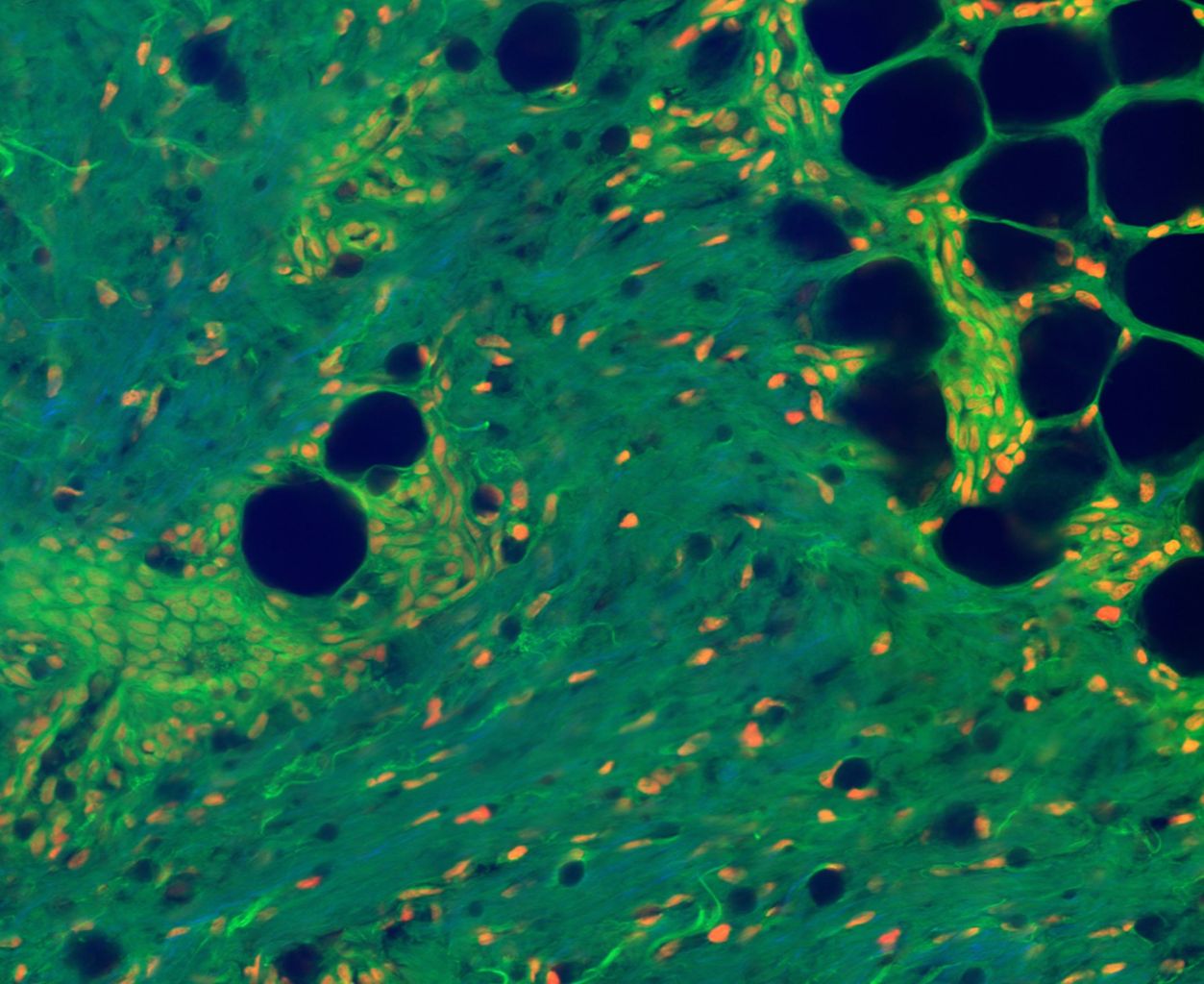

Magnification: Green is a fluorescent protein stain, red is a DNA stain, and blue is SHG in ordered Collagen tissue. DNA clusters in cell nuclei, proteins cluster in cell bodies, and collagen fibers form connective tissue in the skin sample. All images: Prof. Michael Giacomelli / University of Rochester

Magnification: Green is a fluorescent protein stain, red is a DNA stain, and blue is SHG in ordered Collagen tissue. DNA clusters in cell nuclei, proteins cluster in cell bodies, and collagen fibers form connective tissue in the skin sample. Image: Prof. Michael Giacomelli / University of Rochester



Lasers enable clinical imaging of pathology in living human tissue

The femtosecond laser system (FemtoFiber ultra 920) chosen for the next iteration of the Giacomelli lab’s microscope is a possible solution for applications in non-linear microscopy like two-photon excitation of fluorescent proteins and SHG based contrast mechanisms. With an emission wavelength of 920 nm, it provides the highest peak power for imaging with green and yellow fluorescent protein markers (GFP, YFP) commonly used in pathology, neurosciences and other laser-related biophotonic disciplines. Researchers appreciate the usability of the system since it is both, maintenance free and very compact.

2-photon fluorescence microscopy can provide rapid point-of-care diagnosis of non-melanoma skin cancer through real-time imaging of fresh tissue biopsies.



About Giacomelli Lab / University of Rochester

The Giacomelli Lab focuses on the application of multiphoton and fluorescence imaging to surgical pathology and clinical medicine. The lab team designs custom multiphoton and fluorescence microscopes, algorithms, and electronics that enable surgical and clinical imaging of pathology in living human tissue with an emphasis on building instruments that can be directly used by clinicians and non-engineers.
www.urmc.rochester.edu/labs/giacomelli.aspx
