Laser Rack Systems

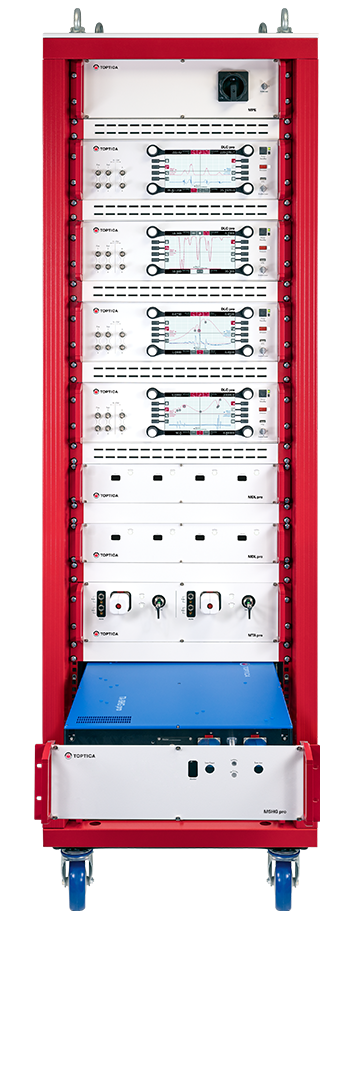

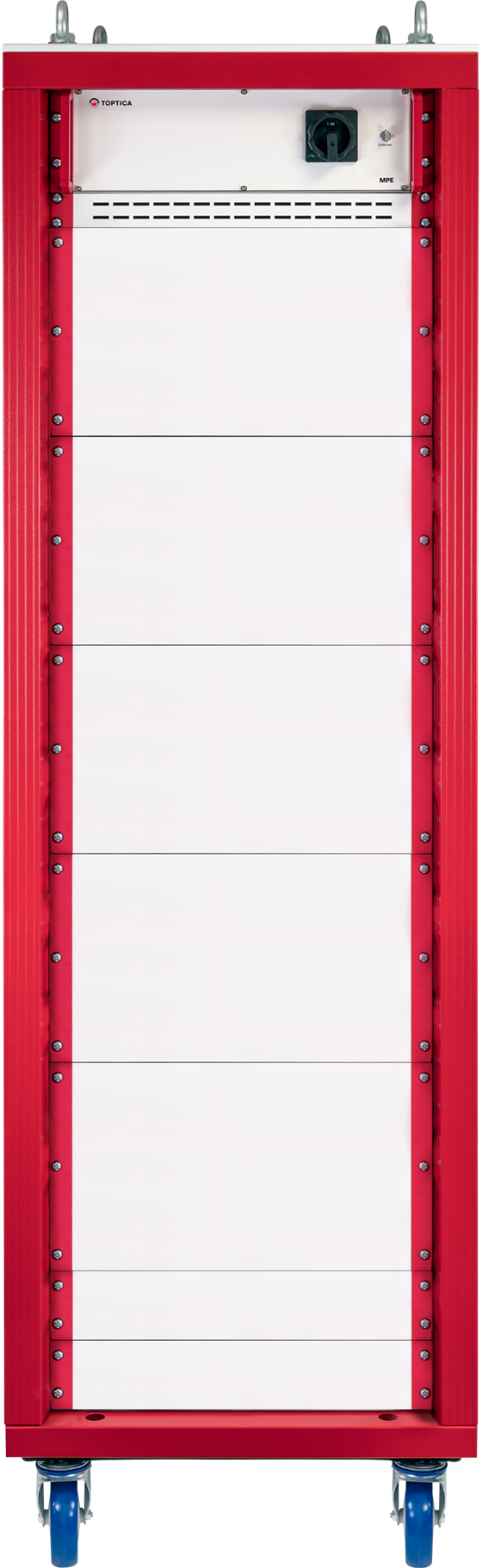

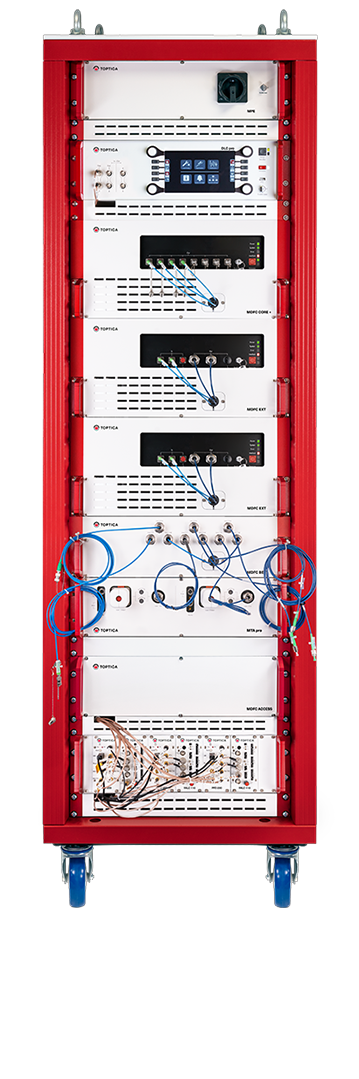

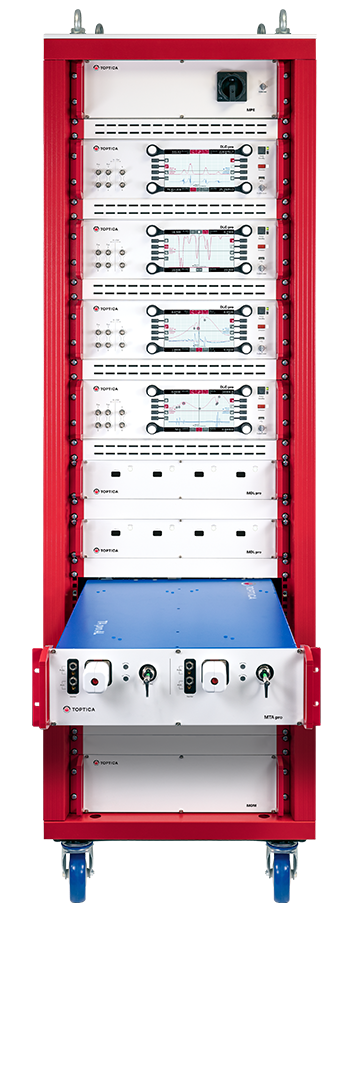

Modular and compact 19" Laser Rack Systems for Quantum Technology Applications & Research

Today’s applications of high-end laser systems are increasingly complex and demand short time to market. TOPTICA addresses both of these demands with its highly modular 19" Laser Rack Systems. The unique body of experience of thousands of TOPTICA lasers installed in scientific laboratories around the world culminates in this product family.

Versatile, Modular, Future Proof

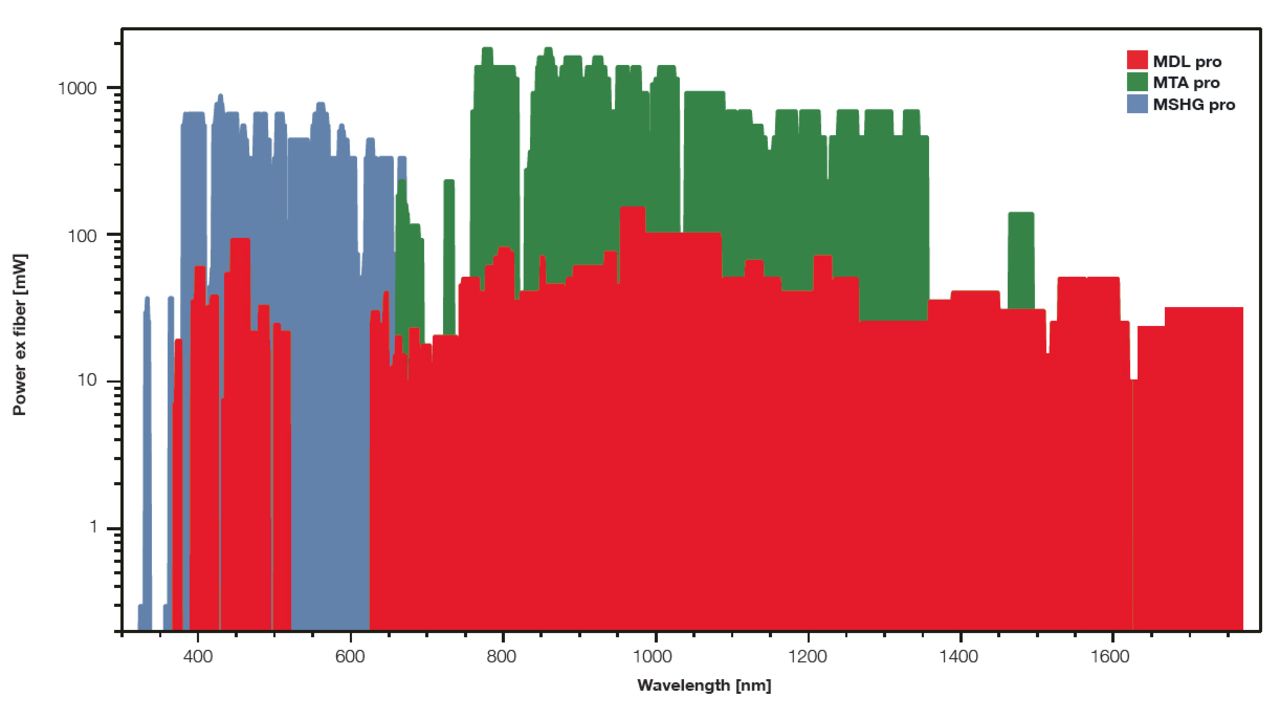

The broad product lines of tunable diode lasers and frequency combs are all offered in the new form factor. Available laser wavelengths are in the range from 330 nm to 1625 nm, some with output powers of several watts. Whatever your application demands, we will find the optimum combination of modules for your personal rack system. Adding new modules is simple.

No Compromise in Performance

The rack system has been designed from the ground up for high stability, ease of use and maximum versatility. All laser modules achieve the same ultimate performance as in TOPTICA’s established table-top systems: great passive stability, unique locking solutions and narrow linewidth.

Convenient Control

All laser modules are powered by TOPTICA’s proven, versatile and convenient digital laser controller DLC pro. It provides local access via touch screen and complete remote control via Ethernet. The frequency comb is also completely remote controlled from a single window.
All laser light comes from single-mode polarization-maintaining fibers.

Just works

The high level of integration not only saves a lot of lab space and makes the system movable. Because all components match perfectly, TOPTICA can guarantee that the complete system will work from day one.

System Components:

  • 波長 1560 nm
  • frep=200 または  80 MHz
  • 全てのエレクトロニクスを本体に内蔵
  • 4 or 8チャンネルのオフセットフリー出力

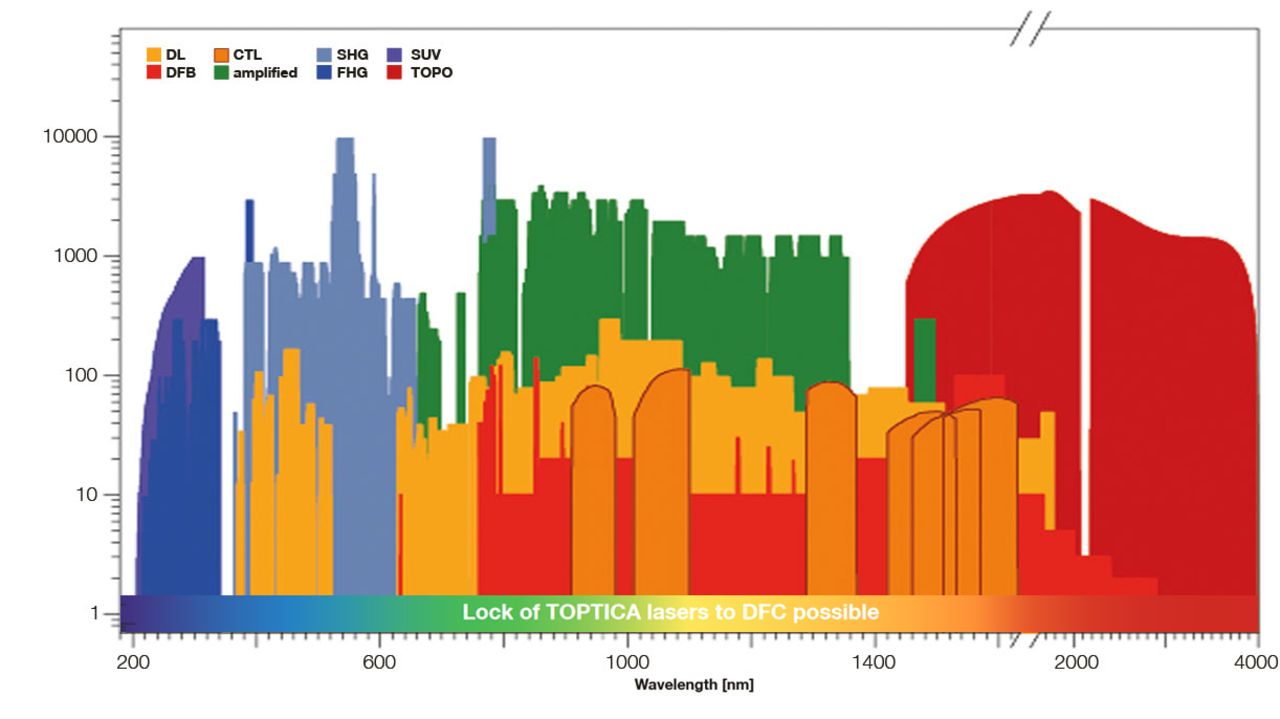

  • 対応波長レンジ: 420 - 2200 nm
  • 全てのトプティカレーザーにロッ
  • ク可能 堅牢 & 高信頼性
  • アップグレード可能なモジュール方式

  • 高安定
  • 小型 高
  • い自由性
  • ファイバー結合

  • 対応波長レンジ: 420 - 2200 nm
  • 全てのトプティカレーザーにロッ
  • ク可能 堅牢 & 高信頼性
  • アップグレード可能なモジュール方式

  • 高安定
  • 小型 高
  • い自由性
  • ファイバー結合

  • 波長 1560 nm
  • frep=200 または  80 MHz
  • 全てのエレクトロニクスを本体に内蔵
  • 4 or 8チャンネルのオフセットフリー出力

TOPTICA also provides a great range of laser phase and frequency locking electronics. Rack integration of laser locking electronics upon request.
