Time-Domain

Pulsed terahertz solutions

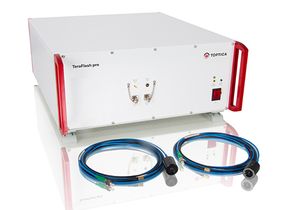

TOPTICA offers complete systems and components for time-domain terahertz generation: The TeraFlash pro sets new standards in terms of dynamic range, bandwidth and measurement speed. Combining TOPTICA’s FemtoFiber smart laser technology with state-of-the-art InGaAs antennas, the system achieves a peak dynamic range of 95 dB and a bandwidth of 6 THz, within a measurement time below 20 s.

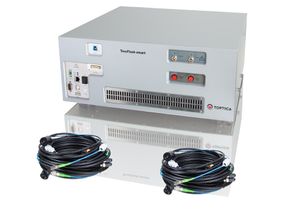

The TeraFlash smart comprises two synchronized femtosecond lasers, eliminating the need for a mechanical delay. This results enables terahertz-based thickness gauging at unprecedented speed: the system acquires up to 1600 complete pulse traces – and hence, thickness readings – per second.

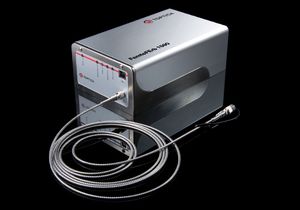

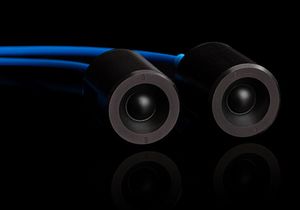

In addition, TOPTICA provides a variety of ultrafast fiber lasers for researchers working with GaAs-based photoconductive switches or with organic-crystal emitters. All of the lasers come with superior specifications. Owing to the use of robust saturable absorber mirror technology for mode-locking, they offer turnkey operation and do not require any mechanical alignment.

  • Fast shaker – 60 traces/s @ 50 ps NEW
  • 95 dB peak dynamic range in < 20 s
  • 6 THz bandwidth in < 20 s

  • Fast-scan option: > 30 pixel/s NEW

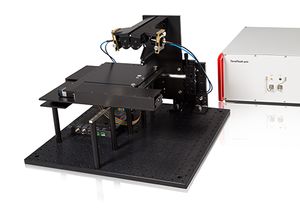

  • Transmission and reflection-mode imaging
  • Wide range of user-selectable contrast parameters

  • Ultrafast measurements: 1600 pulse traces / sec
  • Time-domain dynamic range: 50 dB in 1 ms, > 80 dB in 1 s
  • Patented ECOPS technology

  • Superfast screening system
  • Analog output 100 MHz
  • Digital output up to 500 kHz

  • Bandwidth > 6 THz
  • Average power > 30 µW
  • SM/PM fiber pigtail

  • Wavelength 1560 nm
  • Power > 80 mW
  • Pulse width < 60 fs

  • Wavelength 1560 nm
  • Power > 350 mW
  • Pulse width < 100 fs

  • Wavelength 780 nm
  • Power > 140 mW
  • Pulse width < 100 fs

  • Wavelength 1570 nm
  • Power > 180 mW
  • Pulse width < 40 fs
