RFA

High power, single-frequency, CW Raman fiber amplifier
Our highly reliable Raman fiber amplifiers (RFA) are based on patented technology. With their high power of up to 30 W the amplifiers cover the wavelength range from 1120 to 1370 nm that is not accessible by Yb or Er fiber amplifiers. The RFA is designed using TOPTICA’s high quality engineering excellence and utilizing a stable European & North American supply chain. The all fiber design requires no re-alignment and provides a high degree of stability. The RFA offers a wide tuning range of up to 10nm, a relative intensity noise <1% RMS (10 Hz- 10 MHz) and excellent long term RMS power stability of less than 0.5 % over 100 hours (with a TA pro seed laser).
The RFA is utilising the proven and stable DL pro or TA pro as a seed laser, enabling a seamless integration into the TOPTICA environment of for example wavelength stabilization options.

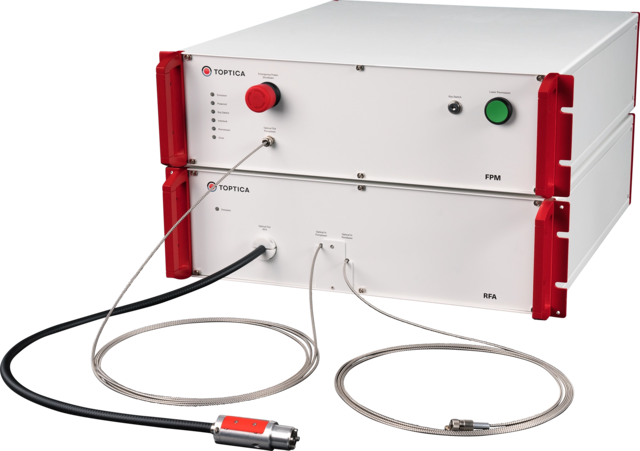

The system consists of two modules:
  • The Fiber Pump Module: Providing pump light for the RFA module
  • The Raman Fiber Amplifier Module: High power amplifier module with inputs from the pump module and the seed laser

Your Benefits

High power from 1120 to 1370 nm
High power of up to 30 W where normal fiber amplifiers cannot reach.
Wide tuning range
Tune widely, with up to 10 nm tuning range.
Reliable and maintenance-free
High reliability and maintenance-free platform design. The RFA is designed using TOPTICA’s high quality engineering excellence and utilizing a stable European & North American supply chain.

Applications

Quantum physics science
Quantum computing & simulation
Quantum communication
Quantum sensing & metrology
Lithography & microfabrication
Semicon inspection & metrology

Options

Frequency doubling
To reach visible wavelengths the RFA can be integrated with TOPTICA 's SHG portfolio of frequency doubling systems. With these, high power in the visible wavelengths (for example more than 15W at 589nm) can be achieved while maintaining tunability over the entire RFA tuning range.
Frequency quadrupling
To reach UV wavelengths the RFA can be integrated with TOPTICA 's FHG portfolio of frequency quadrupling systems. Drawing on TOPTICA’s extensive experience of custom (D)UV systems and maintaining tunability over the entire RFA tuning range.
Additional wavelengths
For wavelengths outside this range please enquire for a custom system.
Third party seed laser
Utilizing a third party seed laser of your choice is possible. Please inquire for requirements.

Specifications

20 dB","sortOrder":10,"groupName":"Beam polarization"},{"label":"Optical power stability","value":"RIN <1% rms (10Hz - 10 Mhz), Long term < 0.5% rms (>60 hrs)","sortOrder":11,"groupName":"Optical power stability"},{"label":"Cooling type","value":"Water cooling","sortOrder":13,"groupName":"Cooling type"},{"label":"Dimensions","value":"2x 19'' 3U (table-top or rack)","sortOrder":14,"groupName":"Dimensions"},{"label":"Input voltage range","value":"100 - 240 V ~, 50\/60 Hz","sortOrder":15,"groupName":"Input voltage"},{"label":"Electrical power consumption","value":"<500 W*","sortOrder":16,"groupName":"Input power"},{"label":"Environmental conditions","value":"15 - 30 \u00b0C (operating), 0 - 40 \u00b0C (storage and transport), non-condensing","sortOrder":17,"groupName":"Environmental conditions"}],"RFA 1207":[{"label":"Center wavelength","value":"1207 nm","sortOrder":1,"groupName":"Emission wavelength"},{"label":"Optical power output","value":"20 W (typ. 25W)","sortOrder":2,"groupName":"Optical power output"},{"label":"Wavelength tuning range","value":"\u00b1 5 nm","sortOrder":3,"groupName":"Emission wavelength tuning range"},{"label":"Operation","value":"CW","sortOrder":4,"groupName":"Operation"},{"label":"Seed laser","value":"DL pro, TA pro or customer provided seed","sortOrder":6,"groupName":"Seed laser"},{"label":"Spatial mode","value":"Near diffraction limited","sortOrder":7,"groupName":"Spatial mode"},{"label":"Optical isolation","value":"Additional isolator required","sortOrder":8,"groupName":"Optical isolation"},{"label":"Beam shape","value":"Collimated, typ. 2.6 \u00b1 0.2 mm","sortOrder":9,"groupName":"Beam shape"},{"label":"Beam polarization","value":"PER >20 dB","sortOrder":10,"groupName":"Beam polarization"},{"label":"Optical power stability","value":"RIN <1% rms (10Hz - 10 Mhz), Long term < 0.5% rms (>60 hrs)","sortOrder":11,"groupName":"Optical power stability"},{"label":"Cooling type","value":"Water cooling","sortOrder":13,"groupName":"Cooling type"},{"label":"Dimensions","value":"2x 19'' 3U (table-top or rack)","sortOrder":14,"groupName":"Dimensions"},{"label":"Input voltage range","value":"100 - 240 V ~, 50\/60 Hz","sortOrder":15,"groupName":"Input voltage"},{"label":"Electrical power consumption","value":"<500 W*","sortOrder":16,"groupName":"Input power"},{"label":"Environmental conditions","value":"15 - 30 \u00b0C (operating), 0 - 40 \u00b0C (storage and transport), non-condensing","sortOrder":17,"groupName":"Environmental conditions"}],"RFA 1292":[{"label":"Center wavelength","value":"1292 nm","sortOrder":1,"groupName":"Emission wavelength"},{"label":"Optical power output","value":"10 W (typ. 15W)","sortOrder":2,"groupName":"Optical power output"},{"label":"Wavelength tuning range","value":"\u00b1 5 nm","sortOrder":3,"groupName":"Emission wavelength tuning range"},{"label":"Operation","value":"CW","sortOrder":4,"groupName":"Operation"},{"label":"Seed laser","value":"DL pro, TA pro or customer provided seed","sortOrder":6,"groupName":"Seed laser"},{"label":"Spatial mode","value":"Near diffraction limited","sortOrder":7,"groupName":"Spatial mode"},{"label":"Optical isolation","value":"Additional isolator required","sortOrder":8,"groupName":"Optical isolation"},{"label":"Beam shape","value":"Collimated, typ. 2.6 \u00b1 0.2 mm","sortOrder":9,"groupName":"Beam shape"},{"label":"Beam polarization","value":"PER >20 dB","sortOrder":10,"groupName":"Beam polarization"},{"label":"Optical power stability","value":"RIN <1% rms (10Hz - 10 Mhz), Long term < 0.5% rms (>60 hrs)","sortOrder":11,"groupName":"Optical power stability"},{"label":"Cooling type","value":"Water cooling","sortOrder":13,"groupName":"Cooling type"},{"label":"Dimensions","value":"2x 19'' 3U (table-top or rack)","sortOrder":14,"groupName":"Dimensions"},{"label":"Input voltage range","value":"100 - 240 V ~, 50\/60 Hz","sortOrder":15,"groupName":"Input voltage"},{"label":"Electrical power consumption","value":"<500 W*","sortOrder":16,"groupName":"Input power"},{"label":"Environmental conditions","value":"15 - 30 \u00b0C (operating), 0 - 40 \u00b0C (storage and transport), non-condensing","sortOrder":17,"groupName":"Environmental conditions"}],"RFA 1370":[{"label":"Center wavelength","value":"1370 nm","sortOrder":1,"groupName":"Emission wavelength"},{"label":"Optical power output","value":"5 W (typ. 8W)","sortOrder":2,"groupName":"Optical power output"},{"label":"Wavelength tuning range","value":"\u00b1 5 nm","sortOrder":3,"groupName":"Emission wavelength tuning range"},{"label":"Operation","value":"CW","sortOrder":4,"groupName":"Operation"},{"label":"Seed laser","value":"DL pro, TA pro or customer provided seed","sortOrder":6,"groupName":"Seed laser"},{"label":"Spatial mode","value":"Near diffraction limited","sortOrder":7,"groupName":"Spatial mode"},{"label":"Optical isolation","value":"Additional isolator required","sortOrder":8,"groupName":"Optical isolation"},{"label":"Beam shape","value":"Collimated, typ. 2.6 \u00b1 0.2 mm","sortOrder":9,"groupName":"Beam shape"},{"label":"Beam polarization","value":"PER >20 dB","sortOrder":10,"groupName":"Beam polarization"},{"label":"Optical power stability","value":"RIN <1% rms (10Hz - 10 Mhz), Long term < 0.5% rms (>60 hrs)","sortOrder":11,"groupName":"Optical power stability"},{"label":"Cooling type","value":"Water cooling","sortOrder":13,"groupName":"Cooling type"},{"label":"Dimensions","value":"2x 19'' 3U (table-top or rack)","sortOrder":14,"groupName":"Dimensions"},{"label":"Input voltage range","value":"100 - 240 V ~, 50\/60 Hz","sortOrder":15,"groupName":"Input voltage"},{"label":"Electrical power consumption","value":"<500 W*","sortOrder":16,"groupName":"Input power"},{"label":"Environmental conditions","value":"15 - 30 \u00b0C (operating), 0 - 40 \u00b0C (storage and transport), non-condensing","sortOrder":17,"groupName":"Environmental conditions"}],"RFA 1389":[{"label":"Center wavelength","value":"1389 nm","sortOrder":1,"groupName":"Emission wavelength"},{"label":"Optical power output","value":"0.7 W (typ. 1W)","sortOrder":2,"groupName":"Optical power output"},{"label":"Wavelength tuning range","value":"\u00b1 1 nm","sortOrder":3,"groupName":"Emission wavelength tuning range"},{"label":"Operation","value":"CW","sortOrder":4,"groupName":"Operation"},{"label":"Seed laser","value":"DL pro, TA pro or customer provided seed","sortOrder":6,"groupName":"Seed laser"},{"label":"Spatial mode","value":"Near diffraction limited","sortOrder":7,"groupName":"Spatial mode"},{"label":"Optical isolation","value":"Additional isolator required","sortOrder":8,"groupName":"Optical isolation"},{"label":"Beam shape","value":"Collimated, typ. 2.6 \u00b1 0.2 mm","sortOrder":9,"groupName":"Beam shape"},{"label":"Beam polarization","value":"PER >20 dB","sortOrder":10,"groupName":"Beam polarization"},{"label":"Optical power stability","value":"RIN <1% rms (10Hz - 10 Mhz), Long term < 0.5% rms (>60 hrs)","sortOrder":11,"groupName":"Optical power stability"},{"label":"Cooling type","value":"Water cooling","sortOrder":13,"groupName":"Cooling type"},{"label":"Dimensions","value":"2x 19'' 3U (table-top or rack)","sortOrder":14,"groupName":"Dimensions"},{"label":"Input voltage range","value":"100 - 240 V ~, 50\/60 Hz","sortOrder":15,"groupName":"Input voltage"},{"label":"Electrical power consumption","value":"<500 W*","sortOrder":16,"groupName":"Input power"},{"label":"Environmental conditions","value":"15 - 30 \u00b0C (operating), 0 - 40 \u00b0C (storage and transport), non-condensing","sortOrder":17,"groupName":"Environmental conditions"}]}' :asterisk='"**Available at most wavelengths in this range\n**Available at most wavelengths in this range\n* Configuration dependent"'/>
