Ultra-low Noise and Narrow Linewidth

Integrated phase noise of the DFC CORE+

  • 34 mrad [70 mHz – 2 MHz]
  • 61 mrad [70 mHz – 20 MHz]
  • 135 mrad [70 mHz – 40 MHz]

The carrier envelope offset frequency fCEO of the DFC CORE +  is zero because of the DFG process implemented in the CERO-Technology . Since it is hard to measure a signal at the frequency origin (0 Hz) we use a method first described by Liehl at al. to characterize the carrier envelope phase (CEP) noise.

An fCEO-free output of the DFC CORE + is amplified and broadened to an octave spanning supercontinuum to implement a modified f-2f setup like shown in figure 1. The long-wave part of the spectrum is frequency doubled and overlapped with the short-wave part at 950 nm. The resulting interference fringes are then filtered with optical bandpass filters and detected with a balanced photo detector. The resulting sinusoidal signal can be sampled up to high frequencies .

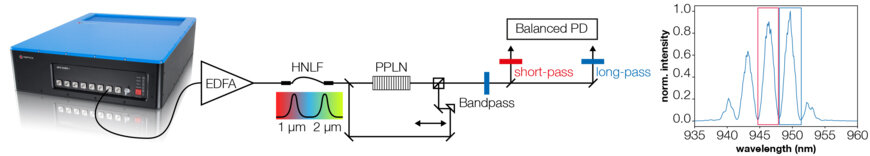

Figure 1: CEP characterization setup with balanced phoo detection.

Exceptional Phase Stability

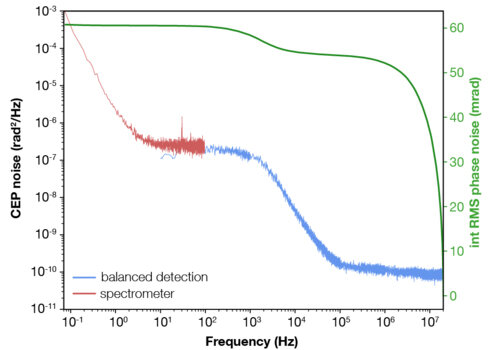

Figure 2: Ultra low CEP noise

Figure 2 shows the ultra-low phase noise of the DFC CORE + measured according to Liehl et al. The long-term CEP stability can be characterized if the bandpass filters and balanced detection from figure 1 is replaced by a spectrometer (spectral interferometry). The interference fringes do show a very high modulation contrast of 97 %.

We deduce 12 mrad phase stability in 25 seconds.

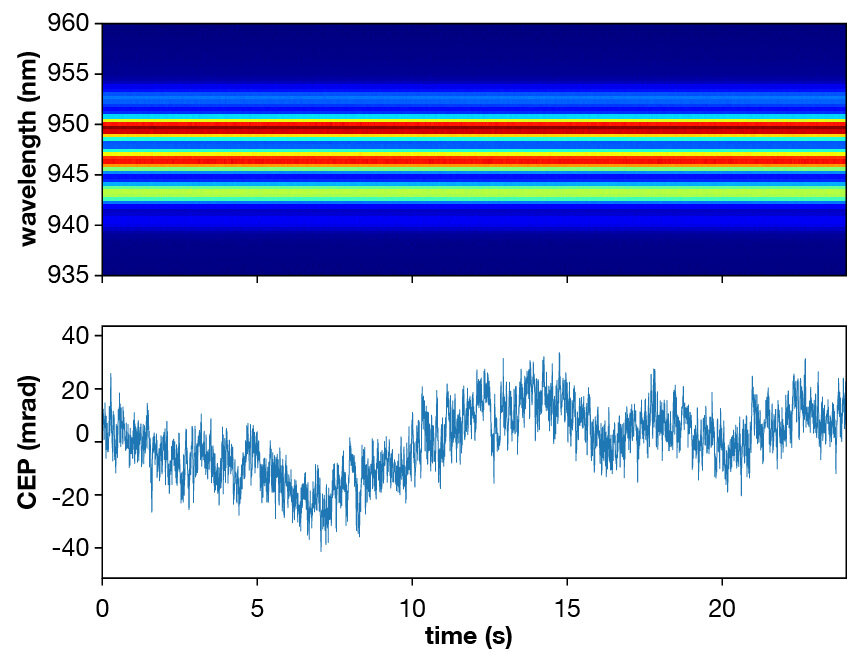

Figure 3: Carrier envelope phase of the DFC CORE + measured with spectral interferometry.

Figure 3 shows a time trace of the fringes over 25 seconds and the CEP which has been extracted by Fourier transformation.

  • high modulation contrast -> 97 %
  • high degree of CEP short term stability
  • Stability limited by slow drift of the interferometer
  • 12 mrad (rms) phase stability in 20 s
