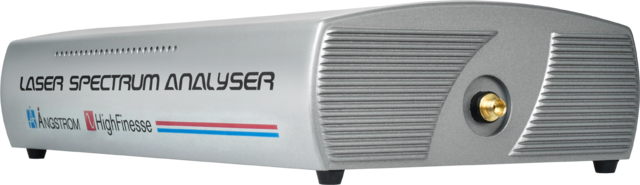

HighFinesse LSA
Laser spectrum analyzer
Characterizing all the lasers, every day
HighFinesse LSA
Laser spectrum analyzer
The grating-based Laser Spectrum Analyzers (LSA) from HighFinesse offer a compact, robust, and highly accurate solution for the simultaneous measurement of both laser central wavelength and linewidth as well as the spectrum with high speed. Designed for a wide range of applications, the product series supports wavelengths from 192 nm to 2250 nm.
Relying on the non-moving parts principle, the LSA ensures exceptional reliability and long-term stability. This design enables precise measurements of both pulsed and continuous-wave (cw) lasers, making the instrument suitable for a broad range of laser sources. The grating-based technology allows for the analysis of laser sources with a large linewidth range, ensuring versatility across different laser types and applications. Laser input is conveniently delivered to the instrument using optical fibers, simplifying integration into existing setups.
Relying on the non-moving parts principle, the LSA ensures exceptional reliability and long-term stability. This design enables precise measurements of both pulsed and continuous-wave (cw) lasers, making the instrument suitable for a broad range of laser sources. The grating-based technology allows for the analysis of laser sources with a large linewidth range, ensuring versatility across different laser types and applications. Laser input is conveniently delivered to the instrument using optical fibers, simplifying integration into existing setups.
Customization options are available to tailor the wavelength and linewidth range to meet specific application requirements. The LSA connects to a PC via USB, and after a simple software installation, the instrument is ready for immediate use. All optical and electronic components are housed in a thermally insulated enclosure, ensuring stable performance in varying environmental conditions. This makes the LSA a versatile and reliable tool for both academic research and industrial laser diagnostics and development.
Your Benefits
High-speed measurements
The measurement rates go up to 500 Hz. A very common application of our LSA instruments is monitoring the lineshape of lasers during their optical adjustment. With their unmatched measurement speed, our instruments are uniquely suited for this task. In the same way, these instruments can also be used for production certification of laser linewidths and lineshapes.
High resolving power
The echelle grating configuration brings outstanding resolving power.
Reliable and robust
The non-moving parts technology brings outstanding robustness.
For pulsed and CW lasers
The HighFinesse LSA can measure both, pulsed and CW lasers.
Applications
Monitoring the lineshape of lasers
Laser production

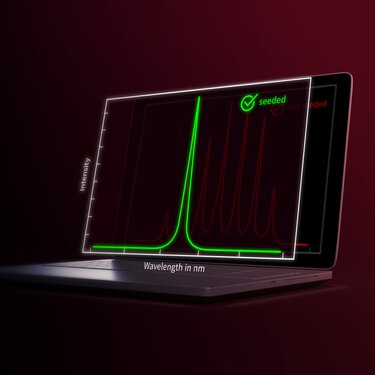

Test if your laser is seeded
Options
LSA Standard
LSA Standard (330 – 1180 nm), the allrounder.
LSA 2R
LSA 2R VIS (330- 1180 nm) for narrower lasers.
LSA UV-I
Measurement range: UV-I (248 – 1180 nm).
LSA UV-II
Measurement range: UV-I (192 – 800 nm).
LSA UV-II/Vis
Measurement range: UV-II/Vis (192 – 1180 nm).
LSA Vis/IR-I
Measurement range: Vis/IR-I (330 – 1750 nm).
LSA IR-II
Measurement range: IR: 1000 – 2250nm + VIS: 500 – 1000nm.
