FemtoFiber vario 1030

High Power Ultrafast Fiber Lasers with superior temporal and spatial beam quality

  • Versatile micro-Joule fiber laser
  • Superior temporal and spatial beam quality
  • Adjustable repetition rate
  • Pulse on demand
  • Continously adjustable pulse duration
  • Industrial grade, compact design
  • Passively-cooled, detachable laser head
  • Robust and reliable, all-PM fiber setup
  • Turnkey system, compact footprint

The laser offers superior temporal and spatial beam quality, which are developed and optimized for ophthalmologic applications. The FemtoFiber vario 1030 provides large flexibility with respect to the laser parameters and features continuously adjustable pulse duration and pulse energy and a highly adjustable repetition rate down to pulse-on-demand. Due to its industrial-grade, passively-cooled design and the detachable, compact laser head, the FemtoFiber vario 1030 is an excellent fit for OEM integrators.

One of the main benefits for the user is the unique pulse-on-demand design that is provided with the laser. Unlike any other fiber-laser technology, the unique pulse-on-demand realization of the FemtoFiber vario 1030 allows the user to pick the emitted pulses directly from the fundamental pulse train of the oscillator.

  • Specification
    Center wavelength 1030 nm
    Average output power > 2W @ 1MHz

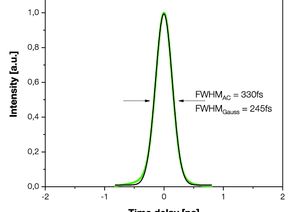

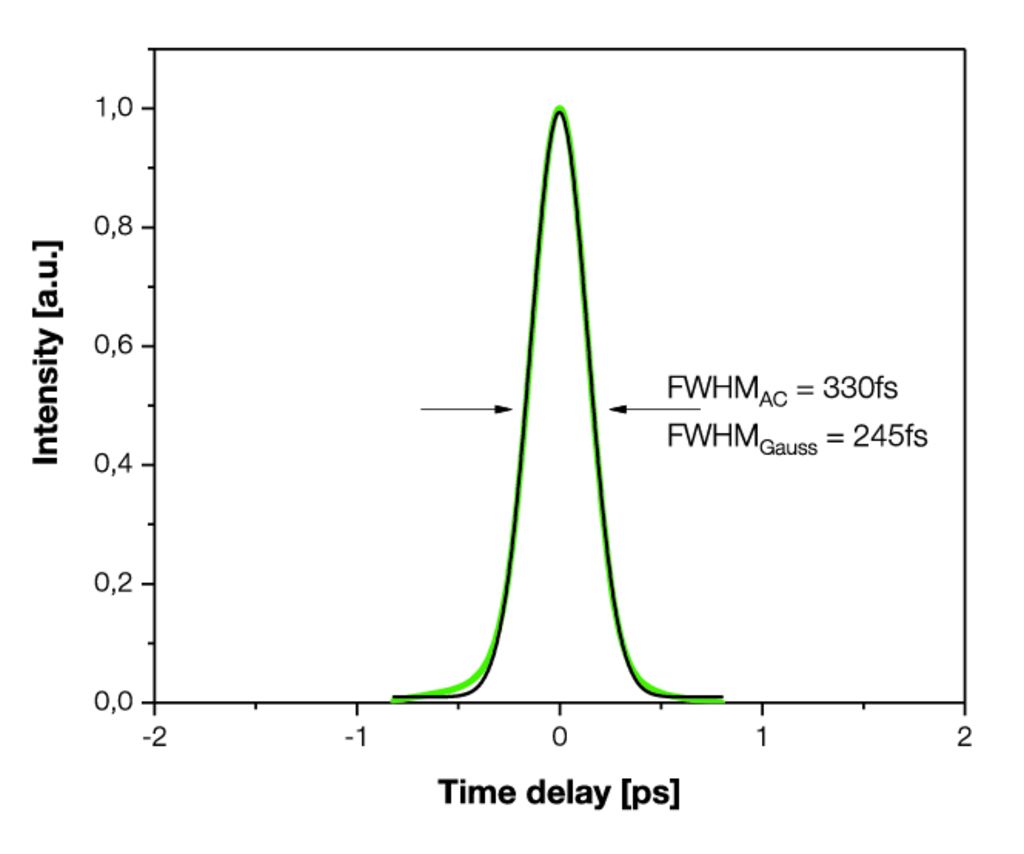

    Pulse duration < 300 (typ. 250 fs)
    Repetition rate < 10 MHz (< 40 MHz possible)
    Beam properties (1/e²) Ø 2.3 mm (typ.)
    Beam shape TEM00, M² < 1.2
    Linear polarization > 95 %, linear, vertical
    Output coupling Free space
    Dimensions laser head (H x W x D) 100 x 195 x 380 mm³
    Weight laser head < 10 kg
    Dimensions control unit (H x W x D) 134 x 483 x 600 mm³ (19” rack, 3units high)
    Weight control unit < 20 kg
    Power supply 24 V DC, < 300 W (optional AC power supply)
    PC Interface Ethernet, USB

    Specifications may change without further notice

  • Additional Information
  • Applications
    • Life sciences
    • Material modification / micro-machining
    • Material inspection
    • OPO/OPA pumping
    • Photopolymerization
    • Medical surgery / examination
    • Ophthalmology (with our partner ARGES)
