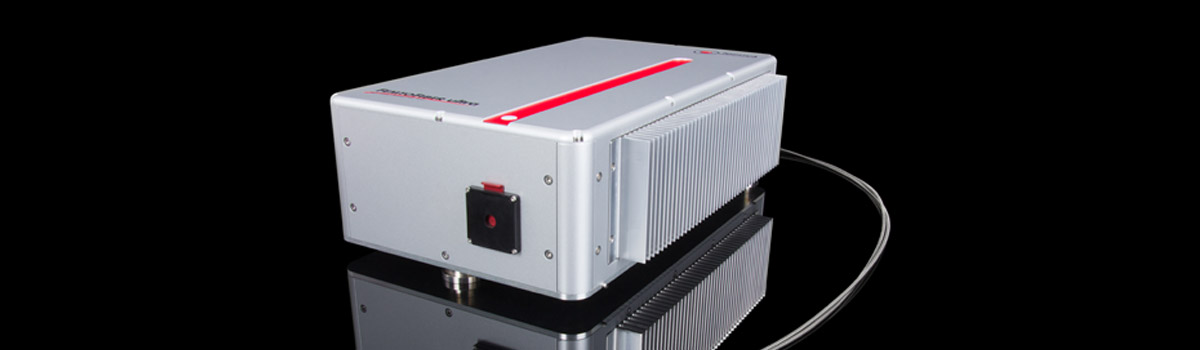

FemtoFiber ultra 1550

Femtosecond fiber laser for quantum communication and terahertz spectroscopy

High-end time-resolved spectroscopy & microscopy experiment in solid-state physics require light engines that are modular and fully-tailored to the application.
TOPTICAs FemtoFiber ultra 1550 provides the basis for a highly modular and customizable system design, offering options for SHG, FHG, supercontinuum generation, and Raman shifting. Based on the master-oscillator power-amplifier (MOPA) approach, the FemtoFiber ultra 1550 can be synchronized to any other laser of the FemtoFiber pro, ultra, vario, and dichro series offering a rich variety of possible laser configurations for your research.

Request a quotation Download the product brochure

Specification

Center wavelength	1552 nm (typ., cog*)
Pulse duration	< 200 fs
Average output power	> 2 W
Repetition rate	80 MHz
*cog: "center of gravity" of the spectral power distribution (weighted/integrated)

Additional Information

Typical autocorrelation trace

Relative power stability over 10 hours

Typical retrieved pulse shape

Typical emission spectrum (linear plot)
Applications
- Quantum communication
- Terahertz generation
Downloads

Beam shape	TEM₀₀, M² < 1.2
Beam divergence	< 2 mrad
Beam size (1/e²)	Ø 2 mm (typ.)
Linear polarization	> 95%, horizontal
Output coupling	Free space
Dimensions laser head	111 x 250 x 380 mm³ (H x W x D)
Weight laser head	< 15 kg
Dimensions supply unit	154 x 342 x 382 mm³ (incl. stand) (height 3U/HE, width/horizontal pitch 63 HP/TE)
Weight supply unit	< 10 kg
Power supply	100 - 240 V AC, 50/60 Hz
Power consumption	< 150 W
PC Interface	Ethernet, USB
Environment temperature	19 - 25 °C (operating), 0 - 40 °C (storage and transport)
Environment humidity	Non-condensing
