Spectral tunability between 830 and 1100 nm

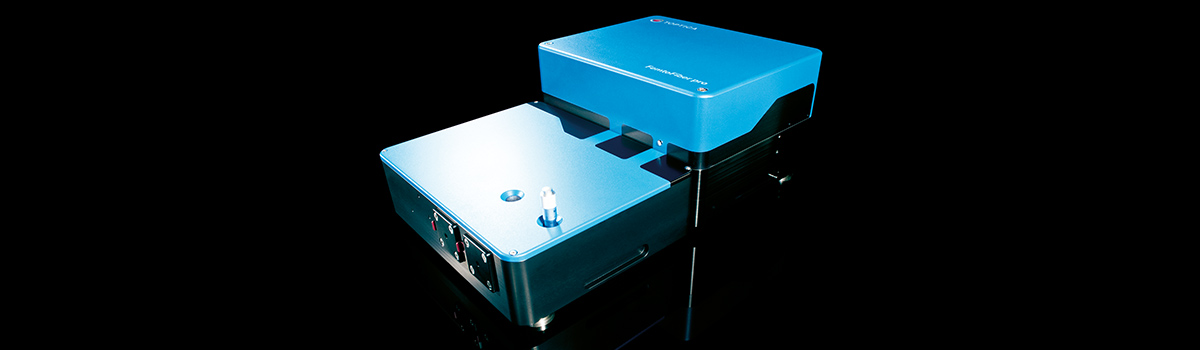

FemtoFiber pro TNIR
Tunable Pulsed Fiber Laser
- Tunable near infrared fiber laser @ 830-1100 nm
- Solitonic laser source with short pulses < 250 fs
- SAM mode locking, PM fiber based MOPA system
- High spectral purity due to selective SHG process
- Robust and reliable design, push-button operation
The FemtoFiber pro TNIR yields a continuously tunable near-infrared femtosecond pulses from 830 nm to 1100 nm. The system comprises an all fiber master-oscillator with subsequent power amplification. A highly nonlinear fiber generates the supercontinuum which is frequency doubled by a manually tunable SHG crystal. A motorized prism compressor allows a fine pulse shape optimization for the selected wavelength. The wavelength tuning is done by a manual micrometer screw and allows a continuous wavelength change by a fan-out structured crystal.
-
Specification
Wavelength tuning range 830 - 1100 nm Average output power 1 - 5 mW* Pulse duration < 250 fs* Repetition rate 80 MHz -
Additional Information
-
Options
M40: Repetition rate 40 MHz instead of standard 80 MHz - Oscillator design with 40 MHz repetition rate
- Some specifications may change (contact us for details)
- Cannot be combined with VAR option
Mxx: Customized repetition rate, e.g. 68 MHz, 77 MHz, … AMP: Multi-Beam Systems - Extension system equipped with amplifier, but no oscillator („AMP“)
- FC/APC fiber input for external seeding by the master system
- Additional seed ports can be added to each master
- Allowing multi-beam system of up to 4 units
- Combination of all FemtoFiber pro variants possible
- Popular multi-beam systems:
MASTER Model AMP 1 Model Purpose NIR TNIR AMP CARS laser source NIR UCP AMP Broadband CARS source IR SCIR AMP OPCPA seeder system TVIS TVIS AMP Pump-probe spectroscopy
VAR: Variable repetition rate - Adaptation to the oscillator unit, enabling modulation of the repetition rate
- Adjustable resonator length by fast control piezo transducer, resonance frequency > 1 kHz
- Slow control based on motorized stage, tuning range typ. 200 kHz (± 100 kHz to nominal repetition rate)
LRC: Laser repetition rate control - Phase-locked loop electronics for synchronization of the laser pulse train to an external reference signal or a reference laser system
- RMS jitter < 200 fs
- Compact electronics rack with power supply
- USB interface and control software
1ps: Extended pulse length towards picosecond range - Available for FemtoFiber pro NIR and TNIR models
- Pulse length typ. 1 ps (NIR/780 nm), 0.5 - 1ps (TNIR/850-1100 nm)
- Rectangular pulse shape
- Further specifications may change
- Alternative crystal implemented
2 different configurations for increased power in certain wavelength range, see graphics for details.
-
Applications
- Tunable CARS laser source (in combination with FemtoFiber pro NIR/multiple beam configuration, and long pulse option)
- Widely tunable near-infrared light source
- Pump-probe spectroscopy (in combination with a second system/multiple beam configuration)
- Downloads
-
Literature
- Proceedings Article: Lang, M. et al., Technology and applications of ultrafast fiber lasers (Proceedings of SPIE Vol. 8330, 833007, 2012)
- Camp, C. H. et al. High-speed coherent Raman fingerprint imaging of biological tissues, Nat. Photonics 8, 627–634 (2014)
- Galli, R. et al, Effects of tissue fixation on coherent anti-Stokes Raman scattering images of brain.J. Biomed. Opt. 19, 071402–071402 (2013)
- Galli, R. et al., CARS and non-linear microscopy imaging of brain tumors, Proc. SPIE 8797, Advanced Microscopy Techniques III (2013)
- Galli, R. et al., Vibrational Spectroscopic Imaging and Multiphoton Microscopy of Spinal Cord Injury. Anal. Chem. 84, 8707–8714 (2012)
- Galli, R. et al., Non-linear optical microscopy of kidney tumours, J. Biophotonics (2013)
- Krauss, G. et al., Compact coherent anti-Stokes Raman scattering microscope based on a picosecond two-color Er:fiber laser system, Opt. Lett. 34, 2847–2849 (2009)
