Autocorrelation pulse duration < 100 fs at 1560 nm

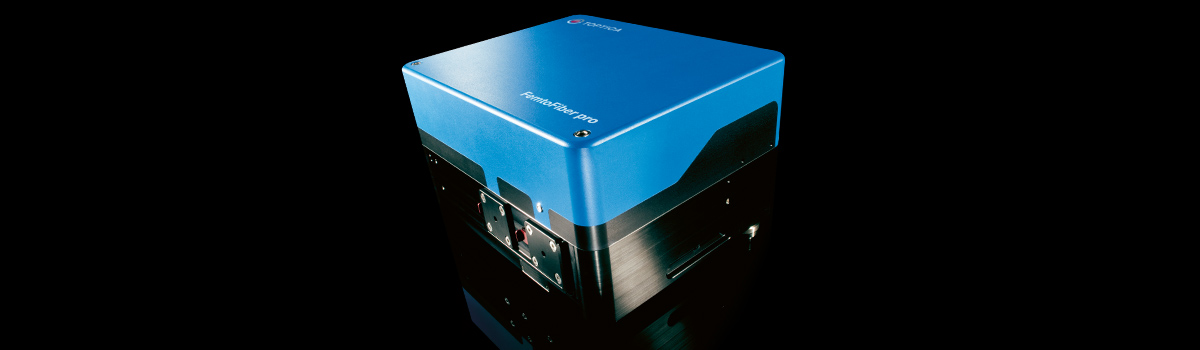

FemtoFiber pro IR
Infrared Femtosecond Fiber Laser
- Ultrafast fiber laser @ 1560 nm
- Short pulse (<100 fs) with highest power (>350 mW)
- SAM mode locking, PM fiber based MOPA system
- Robust and reliable design, push button operation
- Compact footprint < Letter/A4 format
The FemtoFiber pro IR is the base version of TOPTICA’s FemtoFiber pro series. It comprises a very robust SAM mode-locked master-oscillator with a core-pumped power amplifier in one single box, having highest output power for fiber lasers on the market. The system benefits from exclusive use of polarization maintaining fiber components and allows optimizing the pulse characteristics to individual needs by a built-in motorized prism compressor.
-
Specification
Center Wavelength 1560 nm Pulse duration < 100 fs Average Output Power > 350 mW Repetition Rate 80 MHz standard * -
Additional Information
-
Options
M40: Repetition rate 40 MHz instead of standard 80 MHz - Oscillator design with 40 MHz repetition rate
- Some specifications may change (contact us for details)
- Cannot be combined with VAR option
Mxx: Customized repetition rate, e.g. 68 MHz, 77 MHz, … AMP: Multi-Beam Systems - Extension system equipped with amplifier, but no oscillator („AMP“)
- FC/APC fiber input for external seeding by the master system
- Additional seed ports can be added to each master
- Allowing multi-beam system of up to 4 units
- Combination of all FemtoFiber pro variants possible
- Popular multi-beam systems:
MASTER Model AMP 1 Model Purpose NIR TNIR AMP CARS laser source NIR UCP AMP Broadband CARS source IR SCIR AMP OPCPA seeder system TVIS TVIS AMP Pump-probe spectroscopy
VAR: Variable repetition rate - Adaptation to the oscillator unit, enabling modulation of the repetition rate
- Adjustable resonator length by fast control piezo transducer, resonance frequency > 1 kHz
- Slow control based on motorized stage, tuning range typ. 200 kHz (± 100 kHz to nominal repetition rate)
LRC: Laser repetition rate control - Phase-locked loop electronics for synchronization of the laser pulse train to an external reference signal or a reference laser system
- RMS jitter < 200 fs
- Compact electronics rack with power supply
- USB interface and control software
Additional seed ports for future multi-beam setups -
Applications
- Terahertz Generation
- Multiphoton Microscopy
- THG Microscopy
- Mid-IR Generation (in combination with FemtoFiber pro SCIR/multiple beam configuration)
- Optical Coherence Tomography (OCT)
- Downloads
-
Literature
- Article: L.v. Grafenstein et al., 5 μm few-cycle pulses with multi-gigawatt peak power at a 1 kHz repetition rate, Optics Letters 42 (2017)
- Application Note: Combination of femtosecond/picosecond fiber lasers and streak camera for ultrastable time-resolved photoluminescence spectroscopy
- Scientific Publication: Technology and applications of ultrafast fiber lasers (Proceedings of SPIE Vol. 8330, 833007, 2012)
- Scientific Publication: G. Klatt et al., Photo-Dember terahertz emitter excited with an Er:fiber laser; Appl. Phys. Lett. 98:2 (2011) 021114
- Scientific Publication: Liu, S., et al., Mid-infrared time-domain spectroscopy system with carrier-envelope phase stabilization. Appl. Phys. Lett. 103, 181111 (2013)
- Scientific Publication: Benz, A. et al. Strong coupling in the sub-wavelength limit using metamaterial nanocavities. Nat. Commun. 4, (2013)
- Scientific Publication: Amenabar, I. et al. Structural analysis and mapping of individual protein complexes by infrared nanospectroscopy. Nat. Commun. 4, (2013)
- Scientific Publication: Marangoni, M. et al. Fiber-format CARS spectroscopy by spectral compression of femtosecond pulses from a single laser oscillator. Opt. Lett. 34, 3262–3264 (2009)
- Scientific Publication: Aviles-Espinosa, R. et al., Cell Division Stage in C. elegans Imaged Using Third Harmonic Generation Microscopy. OSA Technical Digest (2010)
- Scientific Publication: Aviles-Espinosa, R. et al., Third-harmonic generation for the study of Caenorhabditis elegans embryogenesis. J. Biomed. Opt. (2010)
- Scientific Publication: Tao, Y., et al., Second harmonic generation of chiral-modified silver nanoparticles. (eds. Cheben, P. et al.) 891513 (2013)
- Scientific Publication: Mirzaee, S. M. A., et al., Three photon absorption detection using polymer photo-diodes. (eds. Cheben, P. et al.) 891514 (2013)
- Scientific Publication: Keilmann, F. & Amarie, S., Mid-infrared Frequency Comb Spanning an Octave Based on an Er Fiber Laser and Difference-Frequency Generation. J. Infrared Millim. Terahertz Waves 33, 479–484 (2012)
- Scientific Publication: Wagner, M. et al., Ultrafast Dynamics of Surface Plasmons in InAs by Time-Resolved Infrared Nanospectroscopy. Nano Lett. 14, 4529–4534 (2014)
- Scientific Publication: von Grafenstein, L. et al., 2.05 μm chirped pulse amplification system at a1 kHz repetition rate—2.4 ps pulses with 17 GWpeak power. Opt. Lett. 45, 395469 (2020)
