FPI 100
Fabry-Pérot interferometer
The simple solution to resolving narrow laser lines

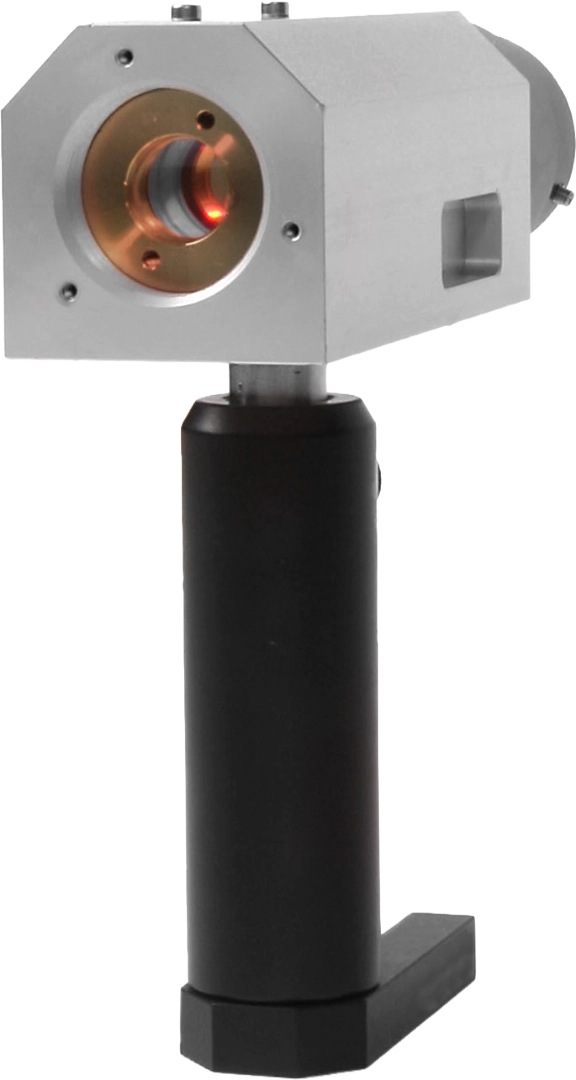

FPI 100
Fabry-Pérot interferometer
The FPI 100 is a confocal, scanning Fabry-Perot interferometer with a built-in photodetector unit, designed for measuring and controlling the mode profiles of continuous wave (cw) lasers. The FPI is available with different mirror sets and photodetectors for wavelength ranges between 330 nm and 3000 nm. The standard mirror reflectivity is 99.8 %, corresponding to a typical finesse of > 400, resolving even narrow laser lines.
Your Benefits
Convenient mode analysis of diode lasers
Various mirror sets and detectors for 330 .. 1700 nm
Free spectral range 1 GHz
Finesse > 200, typ. > 400
Options
Piezo stacks
Piezo stack for scanning, mirrors, and photodetector included in base unit.
Mirror exchange kit
Mirror sets of all FPI articles are also available as mirror exchange kits.
Photo diode exchange kit
Photo diode exchange kits available for visible, NIR and IR range.
Fiber connector
Fiber connector with FC/APC adapter.
Customized finesse
User-specific finesse values available upon inquiry.
SC 110
Scan unit SC 110, as part of DC 110 laser electronics.
miniScan
Stand-alone scan generator miniScan with photo diode amplifier.
Downloads
Technical Drawings
Literature
Papers
-
Extension of the mode-hop-free tuning range of an external cavity diode laser based on a model of the mode-hop dynamics
T. Führer, T. Walther in Opt. Lett. 33:4, 372 (2008).
