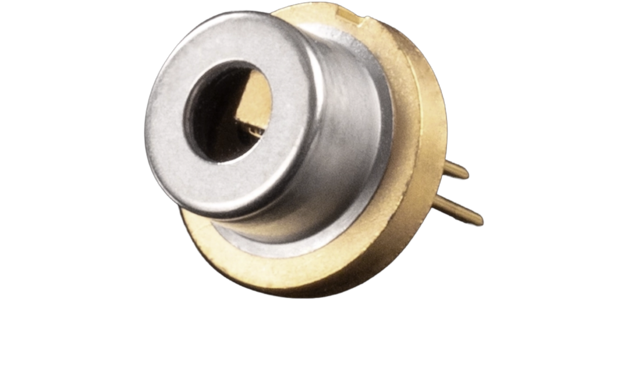

FP & AR-coated laser diodes
Fabry-Perot and anti-reflection-coated diodes for narrow linewidth lasers
The right diodes for quantum applications
FP & AR-coated laser diodes
Fabry-Perot and anti-reflection-coated diodes for narrow linewidth lasers
TOPTICA offers a large variety of wavelength-selected single-mode laser diodes. Among more standard laser diodes you will also find "rarities", i.e. diodes with output wavelengths that only TOPTICA provides. The diodes can be purchased separately. In addition TOPTICA can integrate any diode from the stock lists into a DL pro and its variants. All the details are given in our stocklists for AR and FP diodes (see downloads).
Your Benefits
Extensively tested and only then approved
Each type of diode is carefully tested in an external cavity laser configuration with respect to linewidth, coarse tuning range, mode-hop-free tuning range and power limits. The results are disclosed on request to the customer in a detailed datasheet. In case you can still not match your wavelength of choice, contact TOPTICA, and chances are very high that we can provide it within very short time.
More power in the blue with FP diodes
More than 400 mW from a DL pro HP with FP diodes. Wavelengths between 369 nm and 780 nm, TEM00, normally elliptic, free running or for our DL series. Based on our extensive testing we can ensure the highest quality to our valued customers. See stock list under downloads.
Best linewidths in an ECDL with AR-coated diodes
Free running linewidth down to 0.6 kHz in a DL pro with AR-coated diodes. Wavelengths between 370 nm and 1770 nm. TOPTICA provides the widest and most continuous coverage available within the optical spectrum. See stock list under downloads.
Specifications
Literature
Whitepaper
-
Linewidth measurement of diode lasers
Steffen Schmidt-Eberle
