Amplified Lasers

High-power diode lasers and amplifiers

For a variety of applications the output power of single-mode laser diodes is not sufficient. Here TOPTICA offers tapered amplifiers in Master Oscillator Power Amplifier (MOPA) configuration as well as stand-alone amplifier systems. Tapered amplifiers feature high powers up to 3.5W with excellent beam quality and without compromising the favorable spectral qualities of their master lasers. MOPA systems feature TOPTICAs low noise and narrow linewidth master lasers and offer convenient and safe operation with DLC pro.

Wavelength range Output power Typical tuning range Typical mode-hop-free tunability Typical linewidth (5 µs)

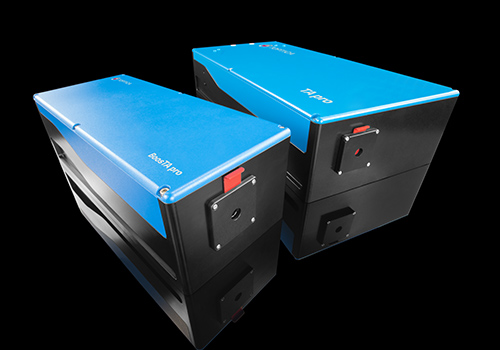

TA pro

660 .. 1495 nm

Up to 3.5 W

10 .. 50 nm

20 - 50 GHz

10 kHz .. 1 MHz

BoosTA

660 .. 1495 nm

0.25 .. 1.5 W

10 .. 50 nm

Depends on master laser

Depends on master laser

BoosTA pro

660 .. 1495 nm

Up to 3.5 W

10 .. 50 nm

Depends on master laser

Depends on master laser
