TeraFlash smart: Ultrafast Time-Domain Terahertz Platform

ǀ  News TOPTICA Tuesday

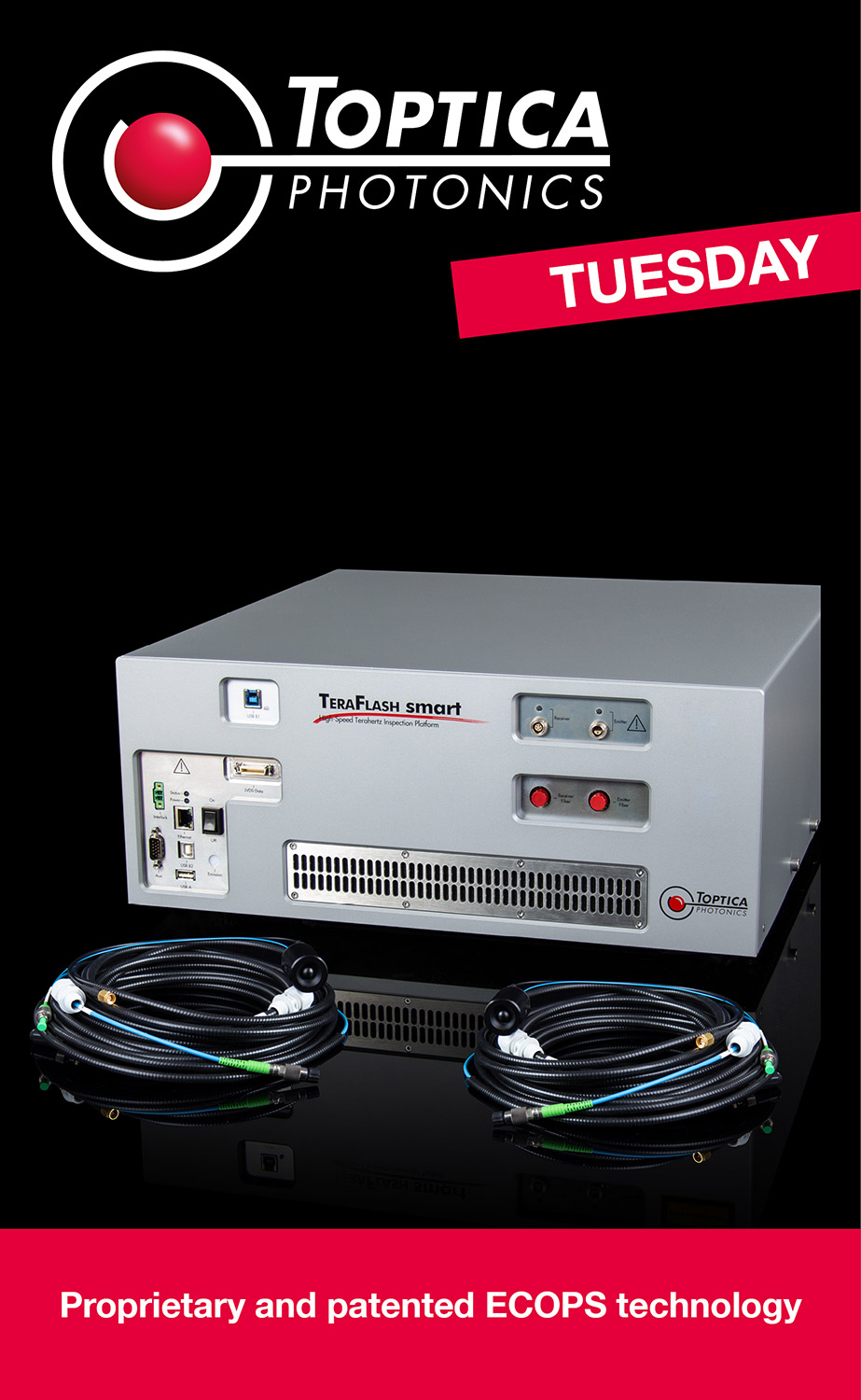

The TeraFlash smart comprises two synchronized femtosecond lasers, eliminating the need for a mechanical delay. This results in extremely high measurement speeds: the TeraFlash smart acquires 1600 complete terahertz waveforms per second, enabling terahertz-based thickness gauging at unprecedented speed. The system thus lends itself to measurements on rapidly moving samples, e.g. conveyor belts, papermaking machines, or extrusion lines.

Key features of the TeraFlash smart

  • Fast measurements of complete terahertz waveforms: 1600 pulse traces / sec
  • Proprietary and patented ECOPS technology
  • Robust design, no mechanical delay line
  • Time-domain dynamic range: > 50 dB single-shot, > 80 dB in 1 s
  • Spectral bandwidth: 3 THz single-shot, 4 THz in 1 s

Applications

  • Plastic Inspection
  • Paint and coating layers
  • Industrial quality control
  • Material research
  • Hydration monitoring
  • Ultrafast Dynamics
  • Security
