MDFC
19” ラック搭載型 差周波光コムモジュール
- 超小型設計
- 高い信頼性を誇る堅牢なデザイン
- 10-21 レベルを実現した超高安定
- ひとつのGUIから全ての機能をリモート制御
- 対応波長レンジ 420 - 2000 nm
トプティカ社の光周波数コムシリーズは、Difference Frequency Generation(差周波発生:DFG)に基づいた独自の CERO-テクノロジを採用しています。本質的に fCEOが安定であり、コンパパクトな設置面積ながら高い堅牢性、ハイエンドの光学パフォーマンス、便利なユーザーインターフェイスを兼ね備えています。
当社の レーザーラックシステム の他の全てのモジュールと同様に、MDFCは大型の光学定盤を不要とし、光周波数コムを19インチラックのフォームファクターに収納するように設計されています。 レーザーラックシステム への統合に最適化されており、面倒なレーザーの調整に悩まされることなく全ての研究者が本来の実験に集中するのに役立ちます。

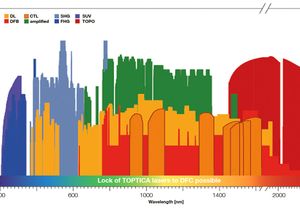

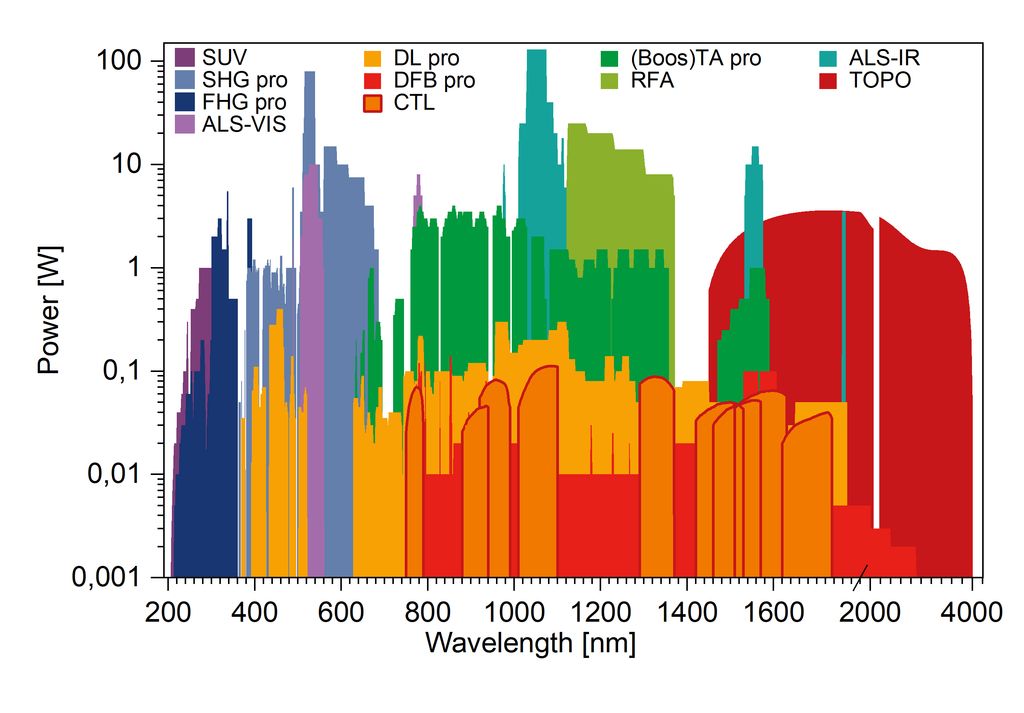

ユーザーの利便性を最大限に高めるため、MDFCは単一のGUIユーザーインターフェイスから制御されます。トプティカ社の波長420nm〜2000 nmの波長可変レーザーシリーズはすべて光周波数コムにロッキング可能です。より短波長のSHG波長可変レーザーは基本波を使用して光周波数コムに安定化することができます
MDFCは当社のモジュラー型レーザーシステム、周波数ロッキング回路および波長計と高度に統合されており、ユーザーはひとつのサプライヤーから完全に安定化された、最先端のラックマウント型レーザーシステムソリューションを手に入れることが可能です。
Compact | Robust | High-end | Convenient
Compact
- 完全自己参照型周波数コム
- 19 インチラックデザイン
High-end
- 10-21 レベルの周波数安定性
関連論文をチェック
MDFC System Components
- 波長 1560 nm
- 全ての制御エレクトロニクスを内蔵
- 4 または 8 ポートのオフセットフリー光出力
- 対応波長レンジ 420 - 2000 nm
- トプティカ社の全てのレーザーをロック
- 堅牢・高信頼性デザイン
- アップグレード可能
- 超高安定
- 超小型デザイン
- 高いフレキシビリティ
- 便利なファイバ結合デザイン
- DL pro から DFCへの位相周波数ロッキング
- 光学リファレンスへの位相周波数ロッキング
Request a quotation Download the product brochure Application Note: Phase and Frequency Locking of Diode Lasers
-
Specification
Module Description Frequency Comb MDFC CORE + Difference Frequency Comb, 4 offset-free outputs @ 1560 nm, > 10 mW, > 20 nm DFC OPTION
8 OUTPUTS8 offset-free, CEP stable outputs at 1560 nm Wavelength extension MDFC EXT 19” Housing and power supply for DFC wavelength extensions DFC IR 1560 nm, high-power, short pulse, for details see Extension specs DFC SCIR 980..2000 nm, 1560 nm, high-power, short pulse, for details see Extension specs DFC SCNIR 840..980 nm, for details see Extension specs DFC NIR 780 nm, for details see Extension specs DFC VIS-L 640..860 nm, for details see Extension specs DFC VIS-S 420..640 nm, for details see Extension specs Beat units DFC BC Beam combiner (comb + cw laser), adjustable split ratio for comb and cw laser light,
free space or fiber-coupled outputDFC BCF Beam combiner fiber-coupled (comb + cw laser), fixed split ratio for comb and cw laser light,
fiber-coupled outputDFC MD Monochromatic detector unit, fiber-coupled, use with DFC BC / DFC BCF Locking electronics FALC Fast laser locking module, 2-channel PID PFD Phase frequency detector, enables remote locking with FALC MDFC LOCK 19” Housing and power supply for up to three pairs of FALC and PFD Reference DFC RF RF reference for DFC CORE+, low-noise oven-controlled quartz, output: 800 MHz, input: 10 MHz DFC GPS GPS frequency reference, output: 10 MHz, stability: 1.3 · 10-12 @ 1s, 1 · 10-13 @ 40000 s DFC DIST Low-noise 10 MHz Distribution Amplifier Accessories DFC SCOPE Digital oscilloscope with spectrum analyzer (FFT), for convenient beat monitoring from software DFC COUNT + 4 channel dead-time free counter MDFC ACCESS Housing and power supply for DFC Electronic Accessories WS7-30 HighFinesse wavelength meter, for convenient determination of comb line number -
Additional Information
-
Applications
- マイクロ波発生
- 光・レーザー標準
- 超高分解能レーザー分光
- デュアルコム分光
- ダイレクト周波数コム分光
- レーザー干渉計
- 可搬型AMOシステム
- 量子コンピュータ
- CEP安定化シードレーザー
- リュードベリ励起 (Rydberg Flyer for complete laser solutions)
- 光時計
-
Downloads
- Short Info: T-RACK
- Brochure: Laser Rack Systems
-
Literature
- Application Note: Phase and Frequency Locking of Diode Lasers
- Scientific Article: E. Benkler et al., End-to-end topology for fiber comb based optical frequency transfer at the 10−21 level, Optics Express [27], 36886 (2019)
- Scientific Article: E. C. Cook et al., Resonant two-photon spectroscopy of the 2s3d 1D2 level of neutral 9Be Phys. Rev. Applied 101, 042503 (2020)
- Scientific Article: M. Collombon et al., Experimental Demonstration of Three-Photon Coherent Population Trapping in an Ion Cloud, Phys. Rev. Applied 12, 034035, (2019)
- Scientific Article: M. Collombon et al., Phase transfer between three visible lasers for coherent population trapping, Optics Letters Vol. 44, Issue 4 (2019)
- Scientific Article: A. Liehl et al., Ultrabroadband out-of-loop characterization of the carrier-envelope phase noise of an offset-free Er:fiber frequency comb. Optics Letters Vol. 42, Issue 10 (2017)
- Scientific Article: T. Puppe et al., Characterization of a DFG comb showing quadratic scaling of the phase noise with frequency, Optics Letters Vol. 41, Issue 8 (2016)
- Scientific Article: G. Krauss et al., All-passive phase locking of a compact Er:fiber laser system, Opt. Lett., 36, 540 (2011)
- Scientific Article: D. Fehrenbacher et al., Free-running performance and full control of a passively phase-stable Er:fiber frequency comb. Optica Vol. 2, Issue 10 (2015)
- Scientific Article: R. Kliese et al., Difference-frequency combs in cold atom physics, arXiv:1605.02426v1 (2016)
- Scientific Article: D. Brida et al., Ultrabroadband Er:fiber lasers, Laser & Photonics Review 8(3) (2014)
-
