DFC 波長拡張
1560nmから、420-2000nmへの波長変換
- 拡張モジュール
- DFC CORE + と使用
- 異なる拡張には、独立したリモートコントロール

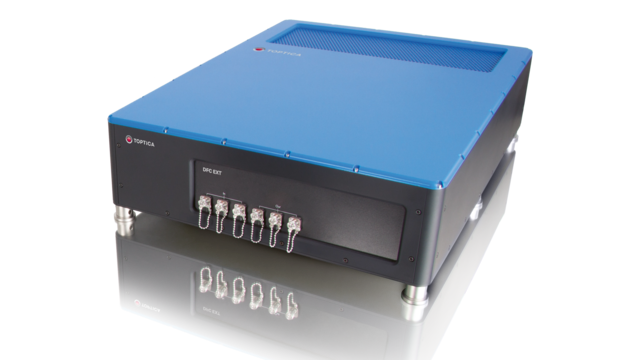

- DFC EXTに最大3台の波長拡張モジュール内蔵
- ハウジング内に、カスタム拡張モジュール&ビート検出
DFC CORE + のオフセットフリー基本波出力1560nmを420nmから2000nm間のご要望の波長に変換するための様々な拡張モジュールがご提供できます。これらモジュールによる波長変換は、 TOPTICAの超短パルスファイバレーザー で確立した技術により実現します。全ての拡張モジュールは、安定性の高いオールファイバーアンプ、非線形変換及び圧縮技術を利用しています。全ての拡張モジュールの出力で、CWレーザーの位相ロッキングを可能にします。特別な波長への拡張はリクエストにより有効な場合があり、或いはトプティカの 完全安定化レーザーシステムに含まれています。
-
Specification

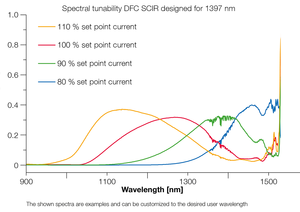

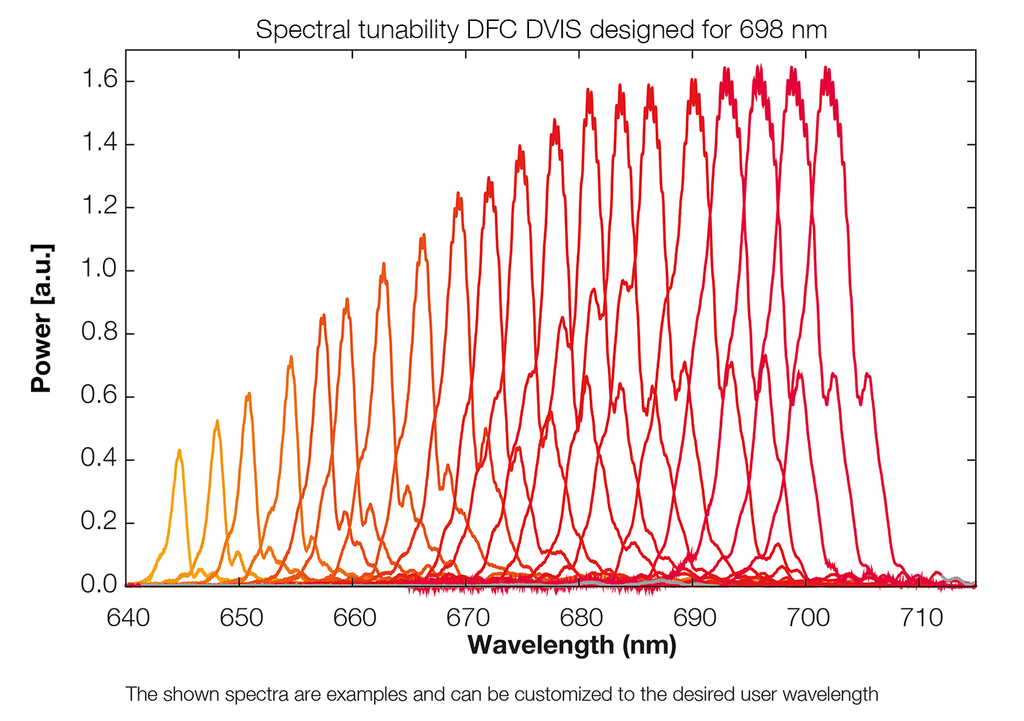

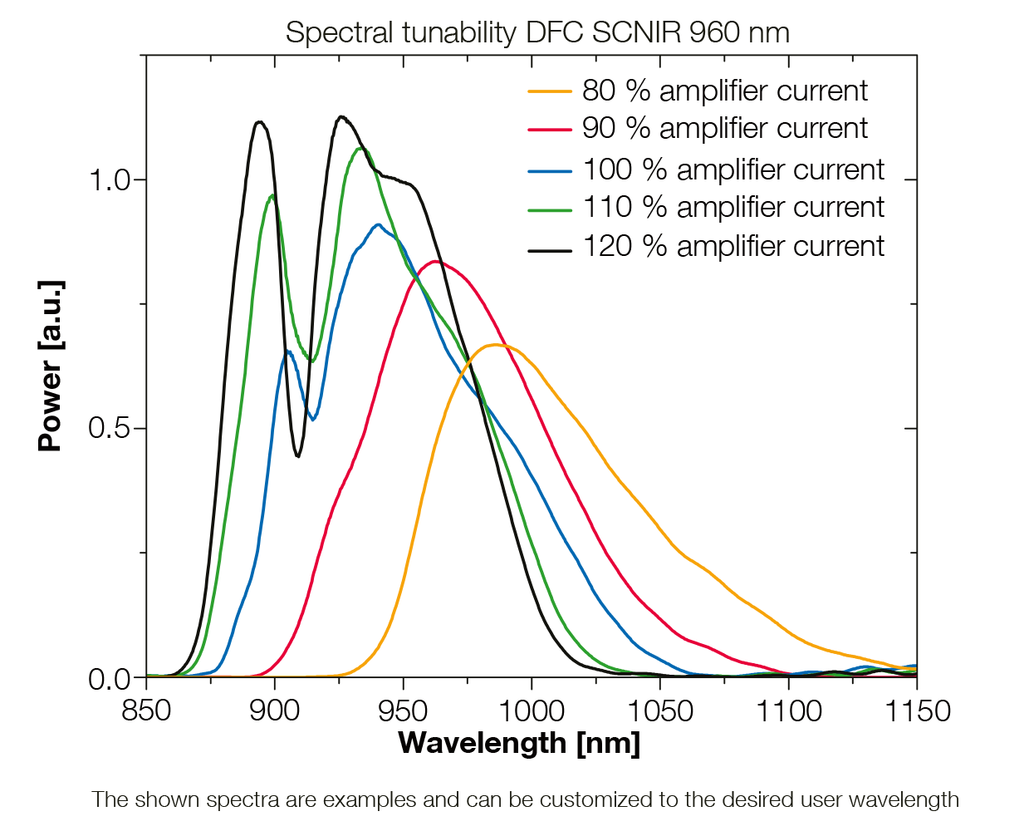

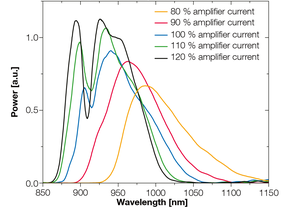

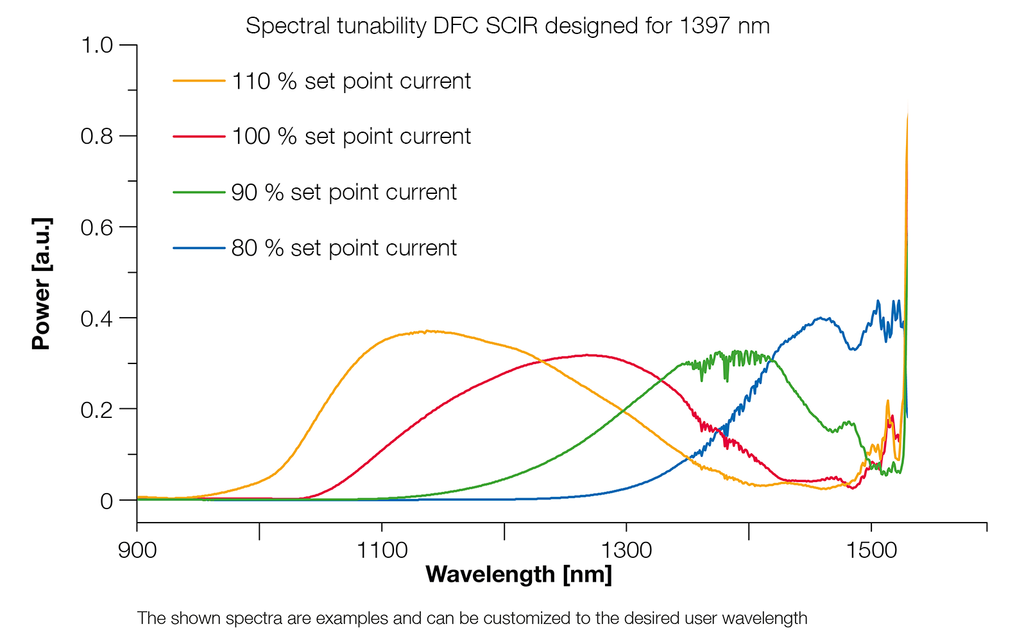

Extension DFC frep Design wavelength within … Bandwidth (FWHM)* Tunability IR 200 1560 nm 80 .. 100 nm, pulse duration < 100 fs - 80 1560 nm 80 .. 100 nm, pulse duration < 100 fs - SCIR 200 980 .. 2000 nm typical 150 .. 300 nm typical 300 nm 80 980 .. 2000 nm typical 100 .. 300 nm typical 300 nm SCNIR 200 860 .. 980 nm typical 30 .. 60 nm typical 100 nm 80 840 .. 980 nm typical 20 .. 60 nm typical 100 nm NIR 200 780 nm > 20 nm - 80 780 nm > 20 nm - VIS-L 200 640 .. 860 nm typical 1 .. 8 nm 60 .. 80 nm*2 80 640 .. 860 nm typical 1 .. 18 nm 60 .. 80 nm*2 VIS-S 200 450 .. 640 nm typical 0.3 .. 3 nm 80 .. 100 nm*2 80 420 .. 640 nm typical 0.3 .. 3 nm 80 .. 100 nm*2, *3 * please inquire for more bandwidth
*2 service operation necessary for adjustment of design wavelength to new value within tunability range
*3 tunability below 450 nm is limited - Additional Information
- Applications
-
Literature
- Scientific Article: E. Benkler et al., End-to-end topology for fiber comb based optical frequency transfer at the 10−21 level, Optics Express [27], 36886 (2019)
- Scientific Article: E. C. Cook et al., Resonant two-photon spectroscopy of the 2s3d 1D2 level of neutral 9Be Phys. Rev. Applied 101, 042503 (2020)
- Scientific Article: M. Collombon et al., Experimental Demonstration of Three-Photon Coherent Population Trapping in an Ion Cloud, Phys. Rev. Applied 12, 034035, (2019)
- Scientific Article: M. Collombon et al., Phase transfer between three visible lasers for coherent population trapping, Optics Letters Vol. 44, Issue 4 (2019)
- Scientific Article: A. Liehl et al., Ultrabroadband out-of-loop characterization of the carrier-envelope phase noise of an offset-free Er:fiber frequency comb. Optics Letters Vol. 42, Issue 10 (2017)
- Scientific Article: T. Puppe et al., Characterization of a DFG comb showing quadratic scaling of the phase noise with frequency, Optics Letters Vol. 41, Issue 8 (2016)
- Scientific Article: G. Krauss et al., All-passive phase locking of a compact Er:fiber laser system, Opt. Lett., 36, 540 (2011)
- Scientific Article: D. Fehrenbacher et al., Free-running performance and full control of a passively phase-stable Er:fiber frequency comb. Optica Vol. 2, Issue 10 (2015)
- Scientific Article: R. Kliese et al., Difference-frequency combs in cold atom physics, arXiv:1605.02426v1 (2016)
- Scientific Article: D. Brida et al., Ultrabroadband Er:fiber lasers, Laser & Photonics Review 8(3) (2014)
